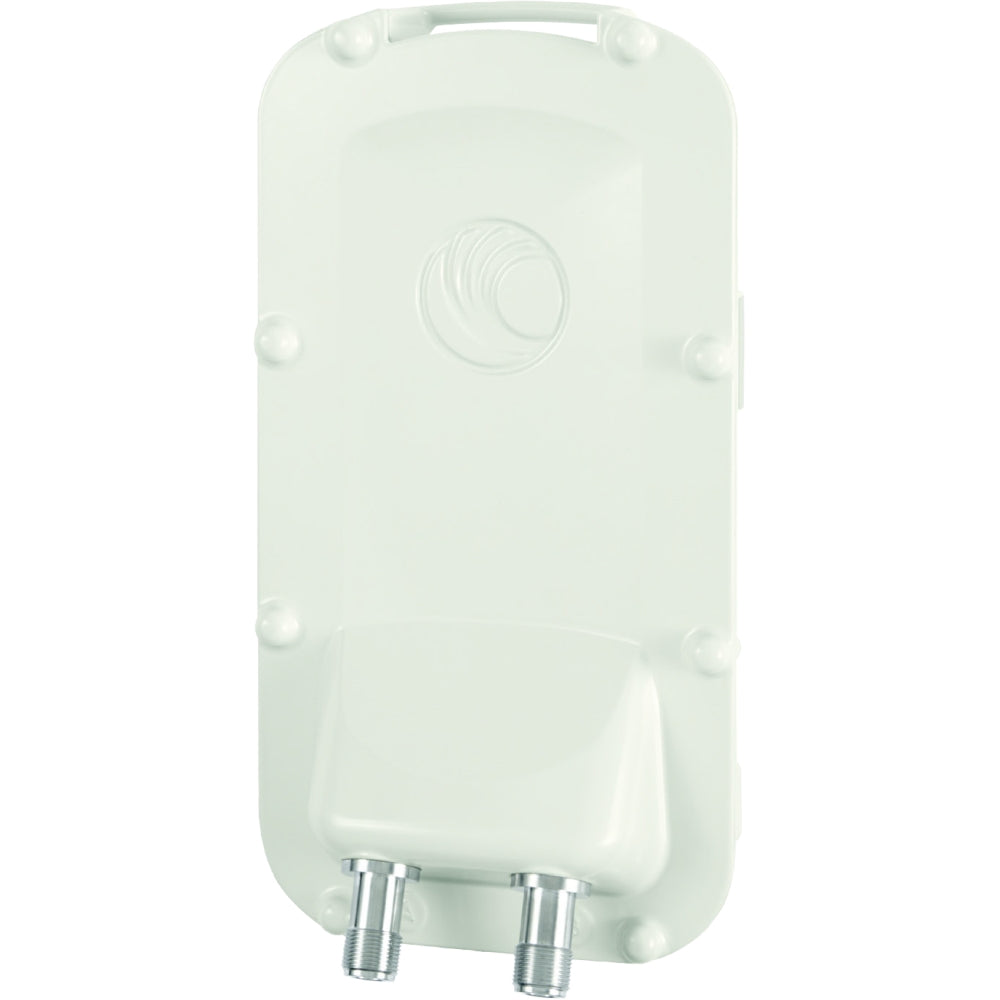

Cambium C050045A006D 5GHz PMP 450i Integrated AP 90° FCC

The Cambium 5 GHz PMP 450i Integrated Access Point is a sector AP for WISPs and ISPs building fixed wireless networks in the 5 GHz band, and this FCC model ships with a built-in 90 degree sector antenna for fast, all-in-one tower deployment. As the hub of a point-to-multipoint cell, it serves a large fleet of subscriber modules from a single radio while holding throughput steady under load. It solves coverage and density in one weatherproof unit.

Running as the PtMP access point, it supports up to 238 subscribers per sector and uses GPS synchronization so co-located APs can share spectrum without self-interference, which is essential on multi-sector towers. The whole cell is managed through cnMaestro for provisioning, monitoring, and firmware. With the antenna integrated, mounting is a single bracket, one gigabit Ethernet run, and alignment of the 90 degree azimuth pattern.

Key specifications

• Band: 5 GHz, 4900 to 5925 MHz (FCC)
• Role: point-to-multipoint integrated sector access point
• Integrated 17 dBi 90 degree sector antenna, 90 degree azimuth by 8 degree elevation
• 2x2 MIMO OFDM with adaptive modulation through 8X 256-QAM
• Selectable channel widths of 5, 10, 15, 20, 30, and 40 MHz
• Up to 300 Mbps per sector; up to 238 subscribers
• GPS synchronization for co-location; 100/1000BaseT Ethernet
• Operating temperature -40 to 75 C, IP66/IP67 rated

Authorized, warrantied, and shipped warehouse-direct from Javelin Networks.
