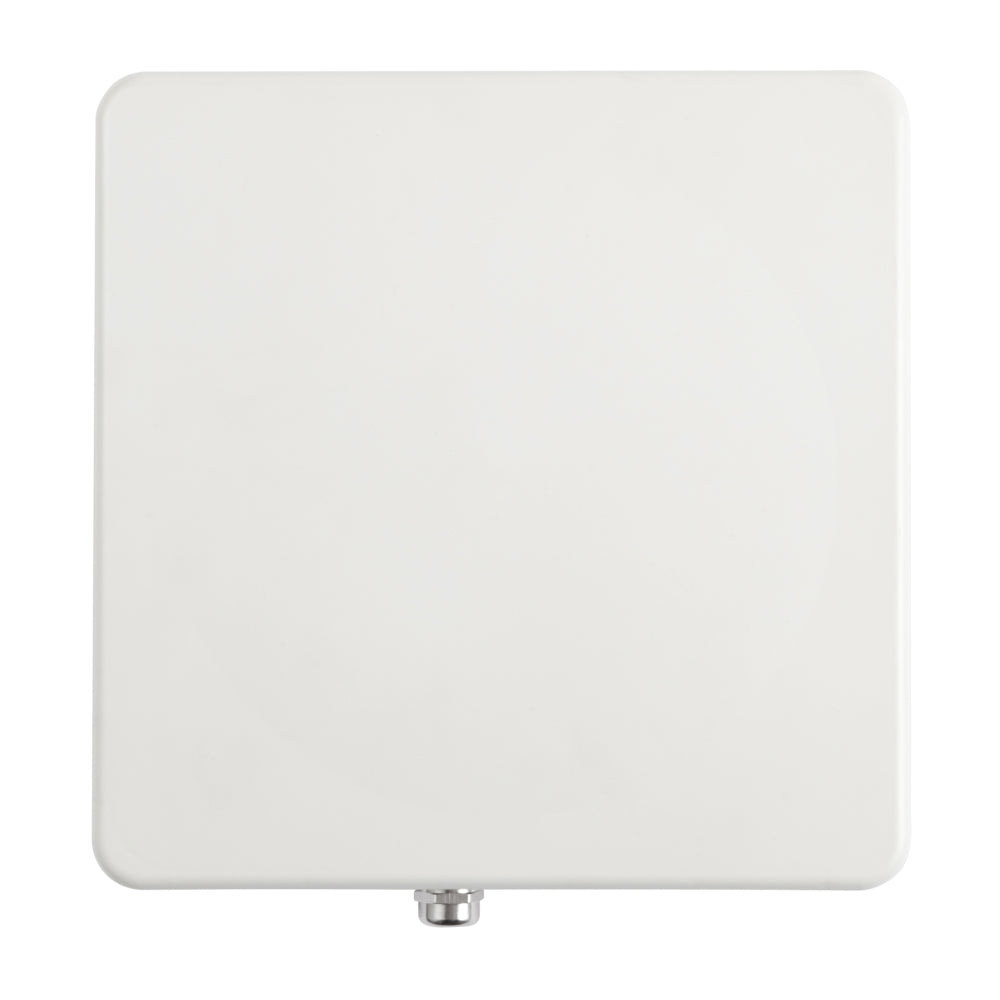

Cambium C050045B004C PTP 450i 4.9/5GHz Int. High Gain FCC

The Cambium PTP 450i Integrated High-Gain radio is a high-performance 4.9/5 GHz point-to-point end unit for WISPs, ISPs, utilities, and public-safety integrators who need robust, high-capacity backhaul. Its access to the 4.9 GHz public-safety band alongside standard 5 GHz spectrum makes it especially useful for municipal and first-responder networks. This is the FCC regulatory variant for deployment in the United States.

Delivered as one END of a link, it pairs with a matching 450i radio to complete a backhaul span. The integrated dual-polarized antenna speeds installation, LINKPlanner validates the path and fade margin beforehand, and cnMaestro provides zero-touch provisioning and monitoring. Built-in GPS synchronization supports interference-free tower co-location.

Key specifications

• Operation across the 4900 to 5925 MHz range, including 4.9 GHz
• Integrated 23 dBi dual-polarized (H+V) antenna
• Over 300 Mbps throughput in a 40 MHz channel
• Selectable 5, 10, 15, 20, 30, and 40 MHz channel bandwidths
• Adaptive modulation from QPSK through 256QAM with up to 8X encoding
• Plus 27 dBm combined transmit power with 40 dB dynamic range
• 802.3at PoE input, 48 to 59 V DC
• Typical latency of 3 to 5 ms with on-board GPS sync
• Operating range of -40 to 60 C and 190 km/hour wind survival

Authorized, warrantied, and shipped warehouse-direct from Javelin Networks.
