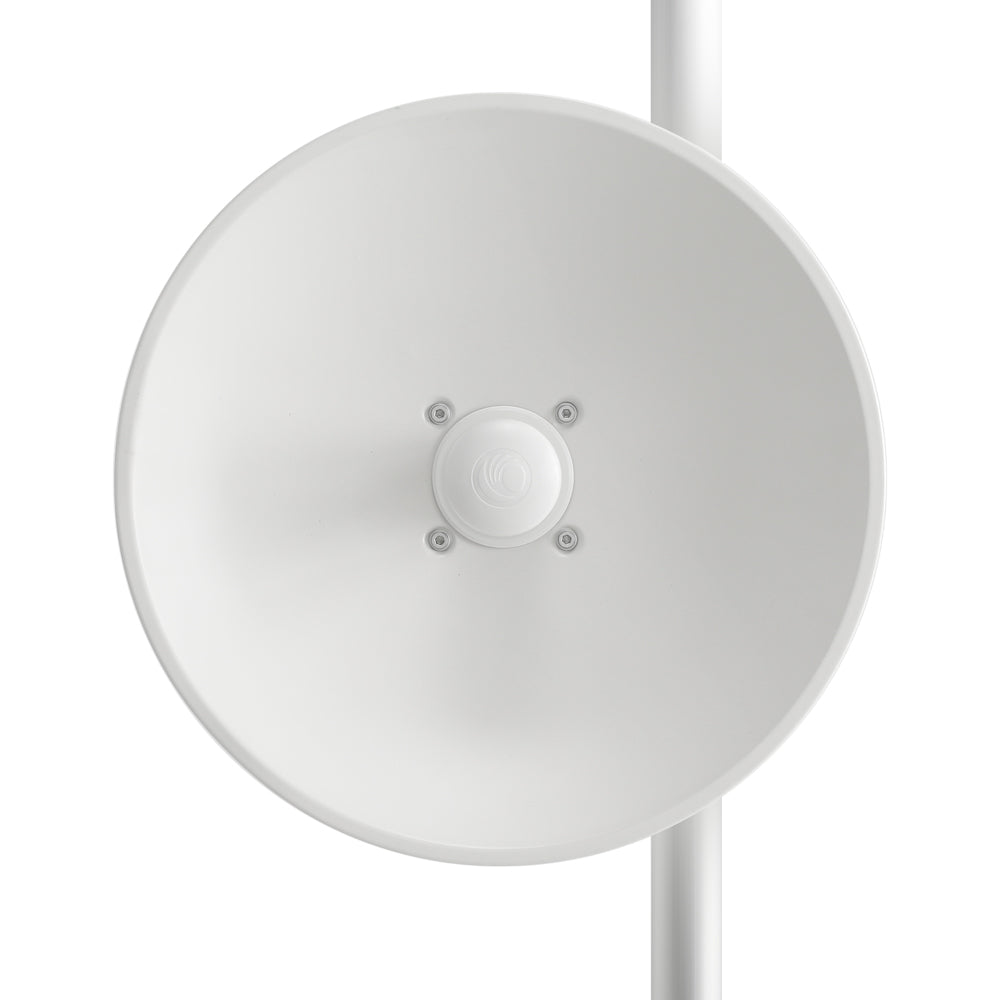

Cambium C050045B022B 5GHz 450b - High Gain, FCC – Radio Only

The 5 GHz PMP 450b High Gain Subscriber Module is a narrow-beam, high-gain radio built for WISPs and ISPs that need to reach subscribers at the far edge of a cell or punch through congested spectrum. Its 24 dBi integrated antenna and tight 7 degree pattern concentrate energy on the access point, holding a clean signal on long or noise-challenged links where a wider subscriber would drop modulation. This is the ideal choice when link budget and range, not coverage width, are the limiting factor.

It fits any PMP 450 sector as a standard subscriber and is provisioned and monitored through cnMaestro (cloud or on-premises) alongside the rest of the network. This is the Radio Only SKU, so it ships without a power supply, letting integrators reuse an existing compatible Cambium PoE injector; the narrow beamwidth rewards careful alignment during install for maximum SNR and top-tier modulation.

Key specifications

• Frequency range 4900 to 5925 MHz
• Integrated antenna 24 dBi, 7 degree azimuth by 7 degree elevation beamwidth
• 2x2 MIMO OFDM, up to 8x 256-QAM modulation
• Up to 300 Mbps aggregate throughput in a 40 MHz channel
• Selectable channel widths of 5, 10, 15, 20, 30 and 40 MHz, configurable in 2.5 MHz increments
• Gigabit 100/1000BaseT Ethernet, full duplex, 802.3 compliant
• FIPS-197 128-bit AES encryption, 256-bit AES optional
• Power input 20 to 32 V DC, 9 W nominal and 12 W peak
• Operating temperature -40 to 60 C, wind survival 200 km per hour (124 mi per hour)

Authorized, warrantied, and shipped warehouse-direct from Javelin Networks.
