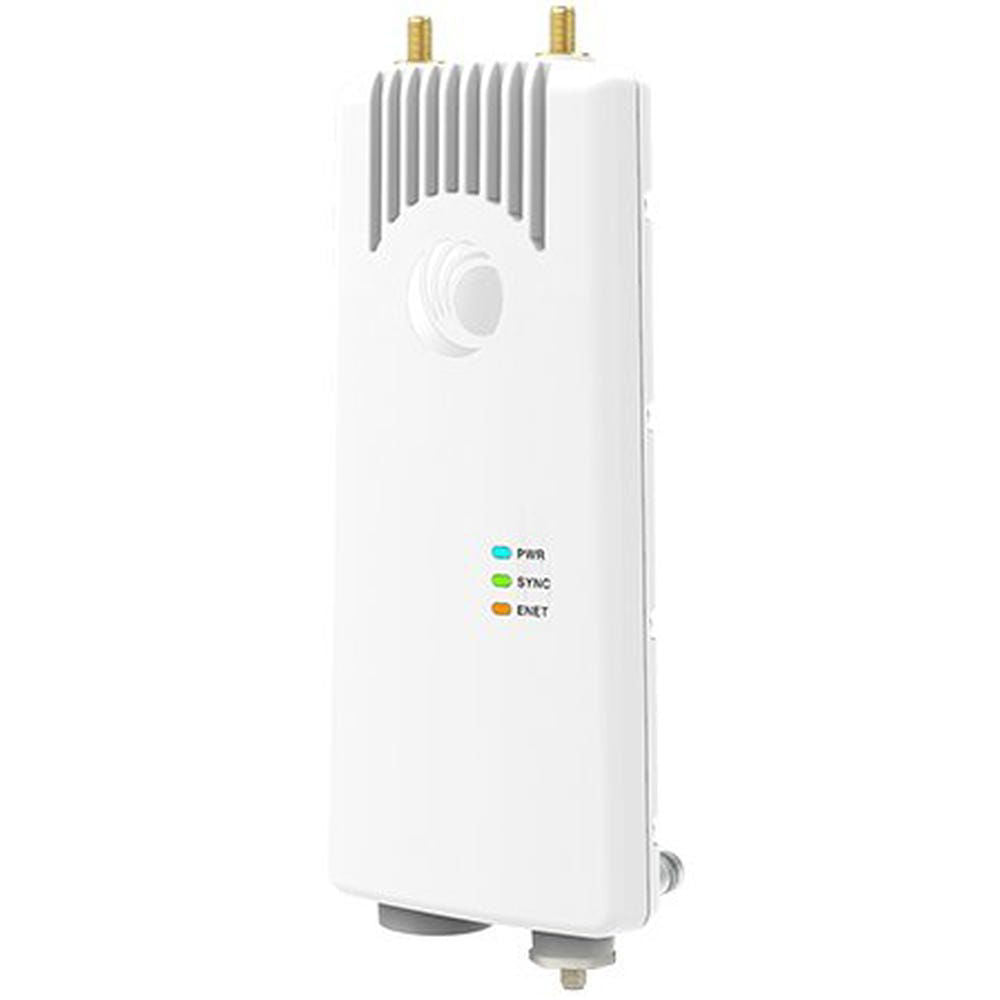

Cambium C050045B042A 5GHz 450b Connectorized FCC
We’ll source it and quote it — usually within one business day.
Request a Quote →The 5 GHz PMP 450b Connectorized Subscriber Module gives WISPs, integrators and utilities the flexibility to pair a 450-series subscriber with the exact external antenna a site demands. With no integrated antenna, it drives a customer-supplied dish or panel through its antenna ports, making it the right tool for extreme-range links, difficult angles, or sites where a specific gain and pattern are required. It keeps the full 450 feature set while letting the antenna choice solve the RF problem.
It operates as a standard subscriber on any PMP 450 sector and is managed through cnMaestro like the rest of the fleet. The rugged IP67 enclosure suits harsh tower and rooftop environments, and separating radio from antenna lets installers reuse existing external antennas or size a new one precisely to the link budget.
Key specifications
- Frequency range 4900 to 5925 MHz
- Connectorized design for a customer-supplied external 5 GHz antenna
- 2x2 MIMO OFDM, up to 8x 256-QAM modulation
- Up to 300 Mbps aggregate throughput in a 40 MHz channel; deployment range up to 40 miles (64 km)
- Selectable channel widths of 5, 10, 15, 20, 30 and 40 MHz, configurable in 2.5 MHz increments
- Gigabit 100/1000BaseT Ethernet, full duplex, 802.3 compliant
- FIPS-197 128-bit AES encryption, 256-bit AES optional
- Power input 20 to 32 V DC; operating temperature -40 to 60 C
- IP67 rated; approximately 24 x 4 x 9 cm and 0.9 kg (2 lb) with bracket
Authorized, warrantied, and shipped warehouse-direct from Javelin Networks.
