Cambium C050067H002D PTP 670 Connectorized END AC+DC FCC
We’ll source it and quote it — usually within one business day.

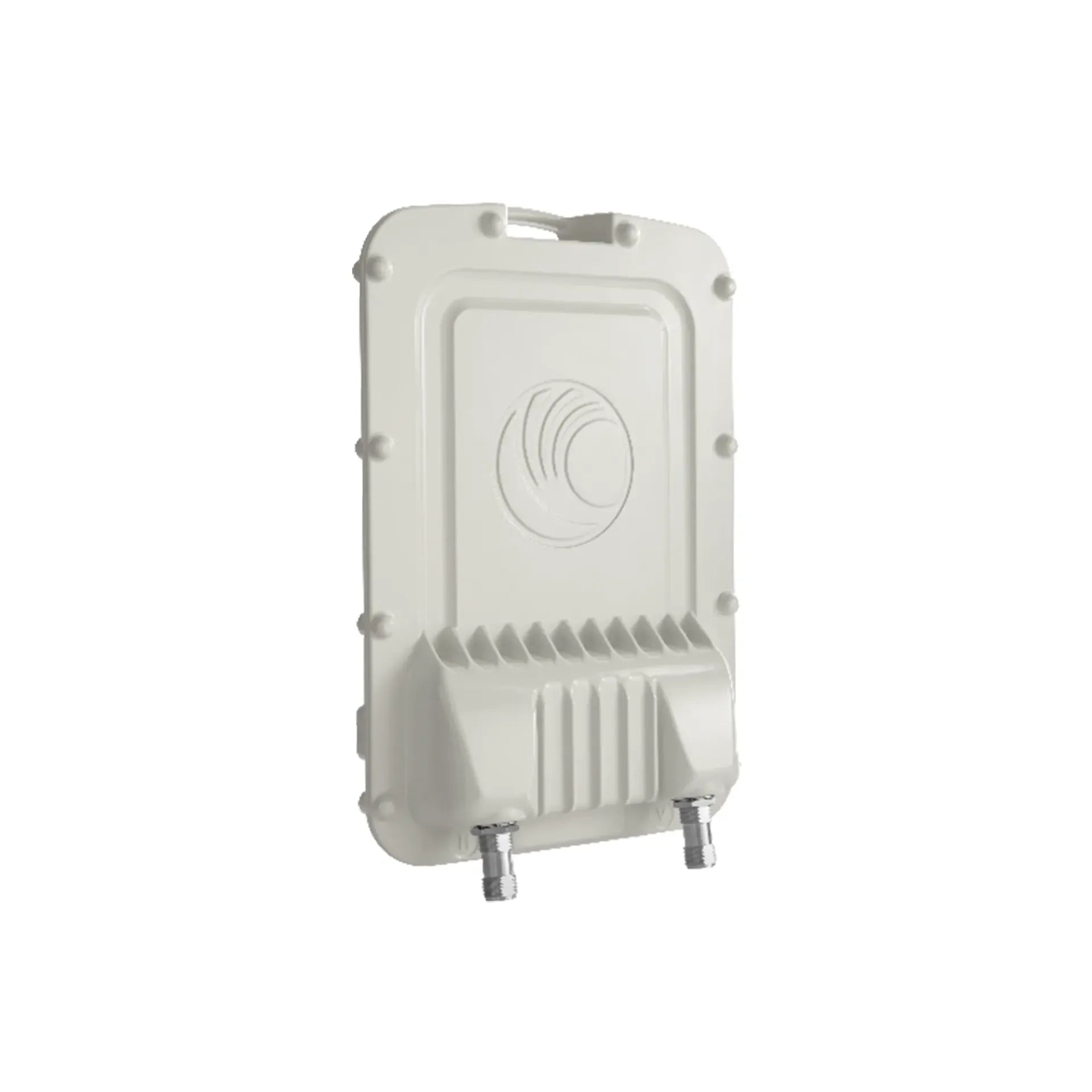

Request a Quote →The Cambium PTP 670 Connectorized END is a high-capacity, spectrum-flexible point-to-point backhaul radio for WISPs, ISPs, utilities, and public-safety and government integrators running mission-critical links. Operating across the wide 4.9 to 6.05 GHz range with intelligent adaptive modulation, it delivers dependable capacity on long-haul and non-line-of-sight paths where lesser radios fail. This is the FCC connectorized variant and ships with the AC+DC power supply.
Delivered as one END, it forms a link with a matching 670 unit and connects to your choice of external antenna via N-type ports, letting you dial in gain for the exact hop. Plan the path in LINKPlanner and manage the deployment through cnMaestro, with Synchronous Ethernet and IEEE 1588v2 timing for networks that need it. The included AC+DC injector supports mains or DC-plant powering at tower sites.
Key specifications
- Wide 4.9 to 6.05 GHz operating range
- Connectorized END with 2 x N-type female antenna connectors
- Up to 450 Mbps aggregate throughput
- Selectable 5, 10, 15, 20, 30, 40, and 45 MHz channel bandwidths
- Adaptive modulation from BPSK to 256QAM dual-payload MIMO
- Transmit power up to 27 dBm
- Ships with AC+DC power supply, 70 W
- 2 x Gigabit Ethernet copper ports plus an SFP port
- Synchronous Ethernet and IEEE 1588v2 timing support
- Wide operating temperature of -40 to 76 C
Authorized, warrantied, and shipped warehouse-direct from Javelin Networks.
