Cambium C058940A125D ePMP 4500 5GHz 8x8 Integrated AP US Cord
We’ll source it and quote it — usually within one business day.

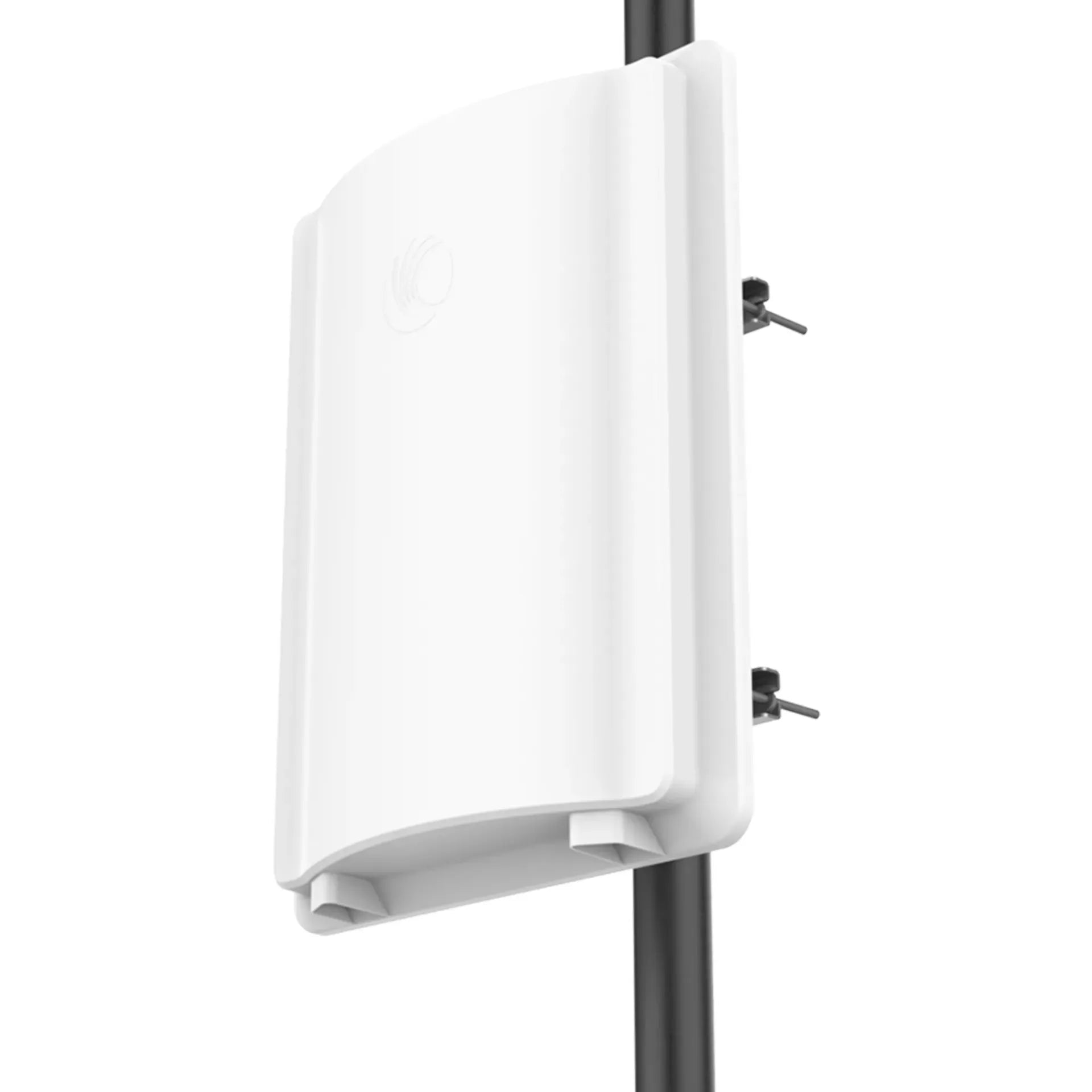

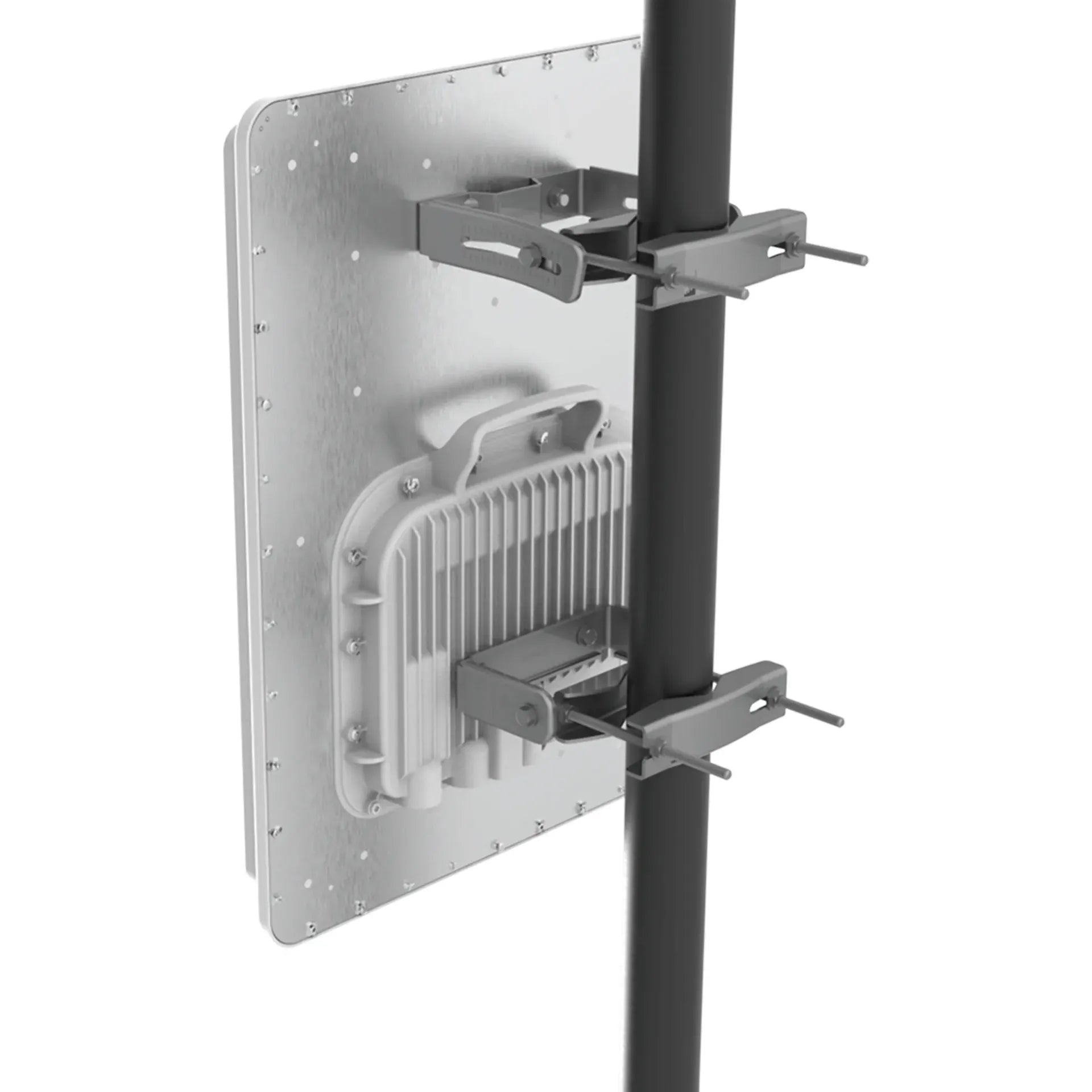

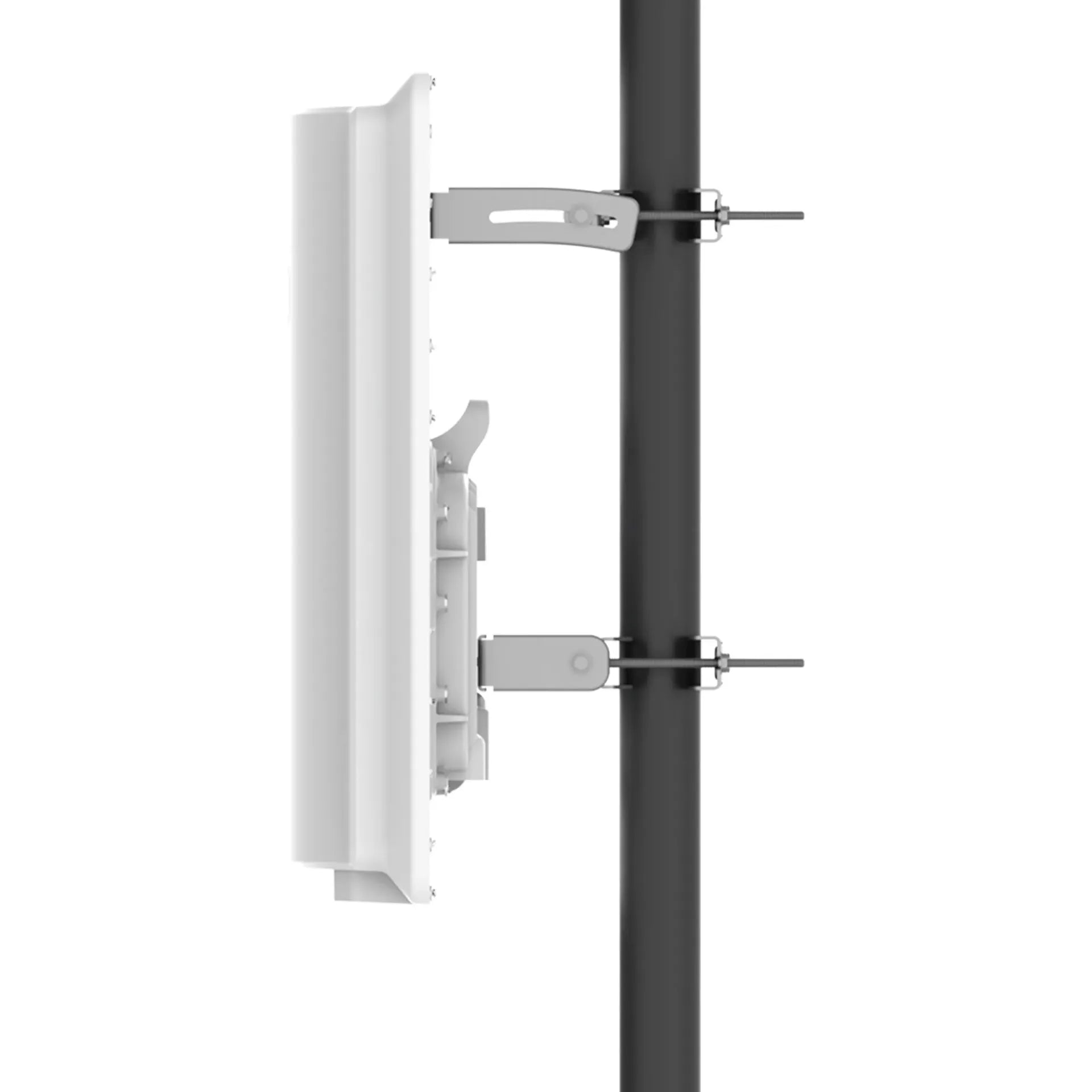

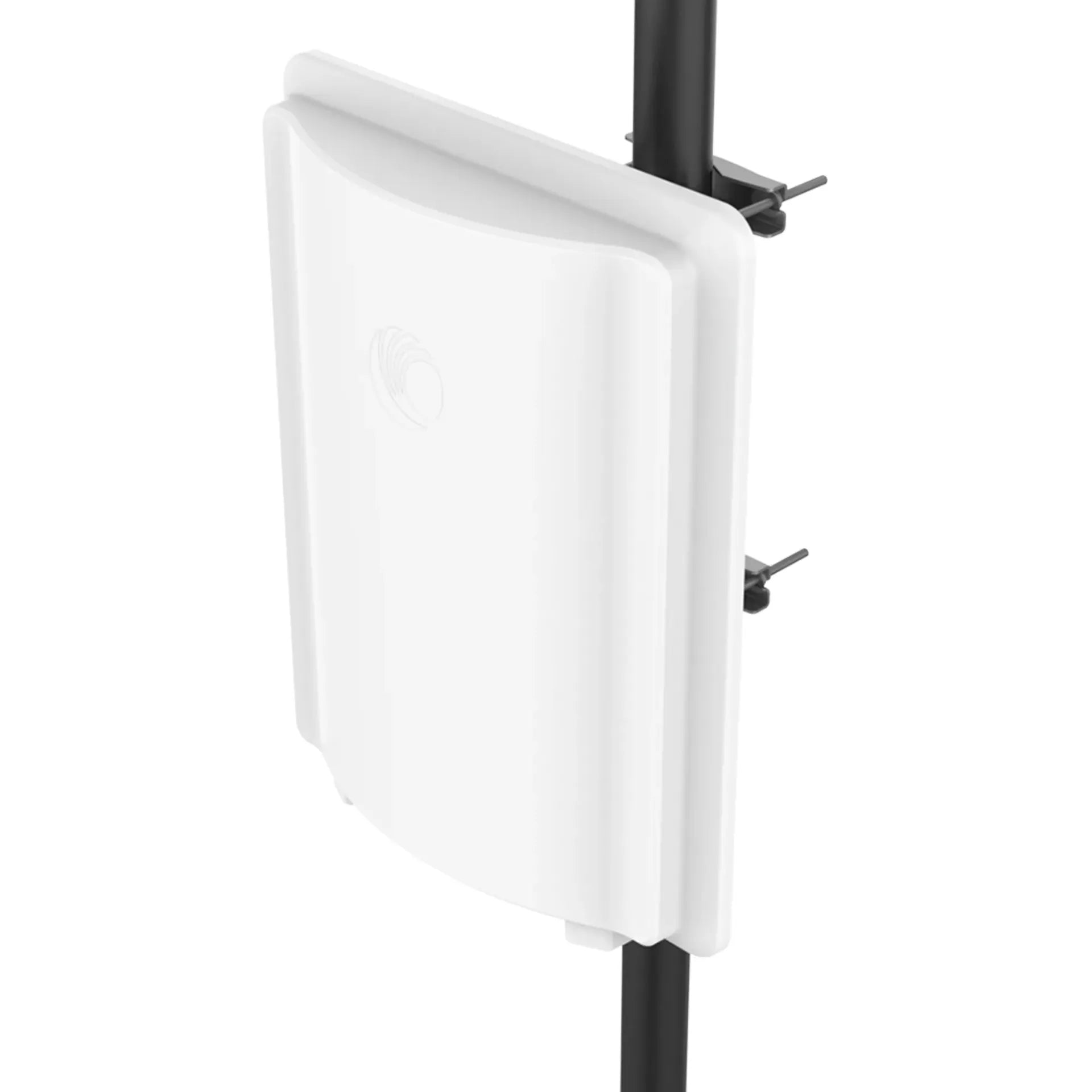

Request a Quote →The Cambium ePMP 4500 is a 5 GHz 8x8 MU-MIMO access point with an integrated 90-degree sector antenna, built on 802.11ax technology for WISPs and ISPs that need maximum capacity with minimum installation effort. The all-in-one design pairs an eight-stream MU-MIMO radio with a 17 dBi sector in a single enclosure, so a tower crew mounts one unit instead of separately aligning a radio and antenna. It targets high-demand sectors where subscriber density and throughput both matter.
Eight-stream MU-MIMO transmits to multiple Force subscriber modules at the same time, and the AP scales to as many as 120 active subscribers per sector. On-board GPS synchronization enables clean frequency reuse across co-located sectors, cnMaestro handles provisioning and monitoring, and 802.3bt PoE powers the full radio over a single cable. This model ships with a US power cord.
Key specifications
- 5 GHz band, 802.11ax underlying technology
- 8x8 MU-MIMO and OFDMA, serving multiple subscribers at once
- Integrated 90-degree sector antenna, 17 dBi
- Selectable 20, 40, and 80 MHz channel widths
- Internal GPS synchronization for frequency reuse
- Up to 120 active subscriber modules per sector
- Multi-gigabit aggregate sector capacity
- 56 V 802.3bt PoE input
- Operating temperature -40 to 55 C
Authorized, warrantied, and shipped warehouse-direct from Javelin Networks.
