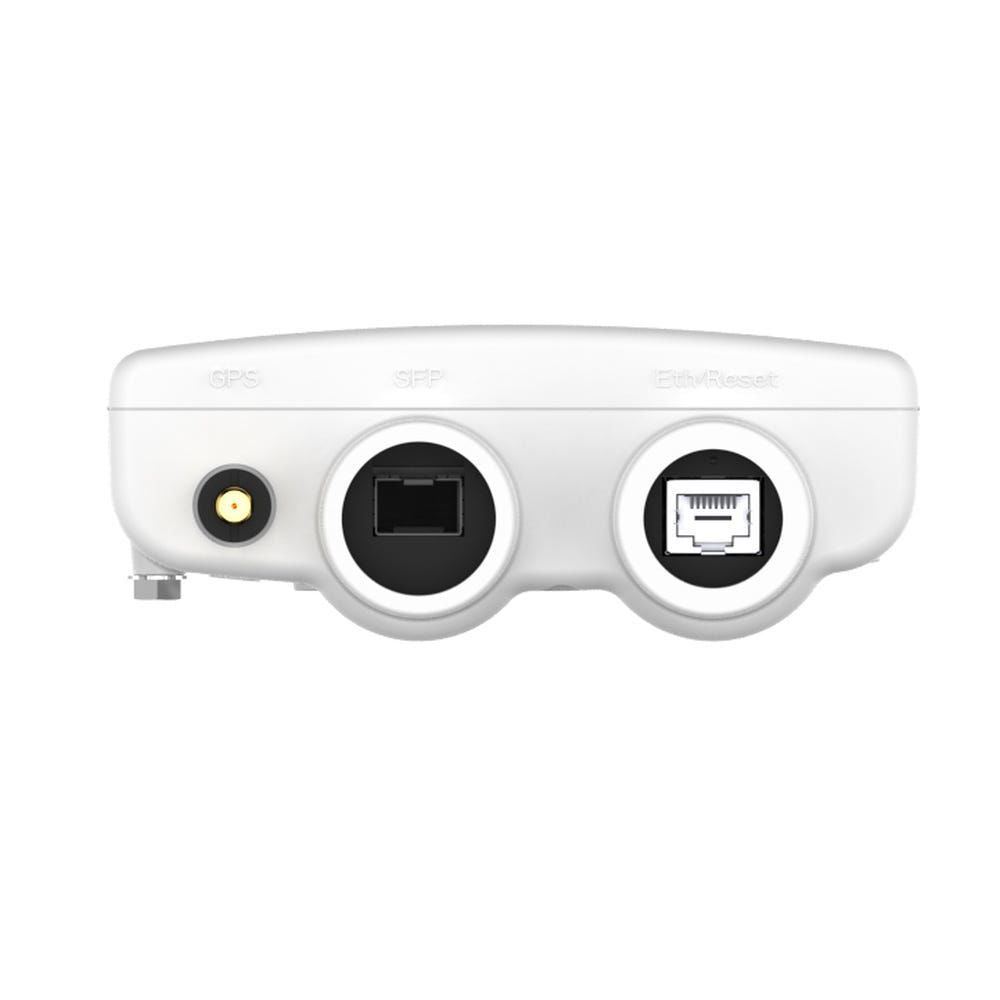

Cambium C068940A122B ePMP 4600 6GHz AP FCC

The Cambium ePMP 4600 is a 6 GHz 4x4 MU-MIMO connectorized access point that opens fresh, cleaner spectrum for WISPs and ISPs facing congestion in the 5 GHz band. Operating across the 6 GHz range lets operators deploy wider channels and higher-order modulation with less interference, translating into more capacity per sector for growing subscriber bases. As a connectorized AP, it works with the sector antenna and beamwidth the coverage plan calls for.

Four-stream MU-MIMO transmits to two subscriber modules simultaneously, and the AP supports up to 120 active subscribers per sector for dense PtMP deployments. Internal GPS synchronization allows co-located sectors to reuse spectrum without self-interference, cnMaestro provides zero-touch provisioning and monitoring, and 802.3at PoE powers the radio over a single run. This model is the FCC variant.

Key specifications

• 6 GHz band, 5.725 to 7.125 GHz depending on local regulation
• 4x4 MU-MIMO and OFDMA, transmitting to two subscribers at once
• Selectable 20, 40, 80, and 160 MHz channel widths
• Connectorized AP radio, 4 x RP-SMA
• GPS synchronization via internal GPS or Cambium Sync
• Up to 120 active subscriber modules per sector
• Multi-gigabit aggregate sector capacity
• 56 V 30 W 802.3at PoE input
• Operating temperature -40 to 55 C

Authorized, warrantied, and shipped warehouse-direct from Javelin Networks.
