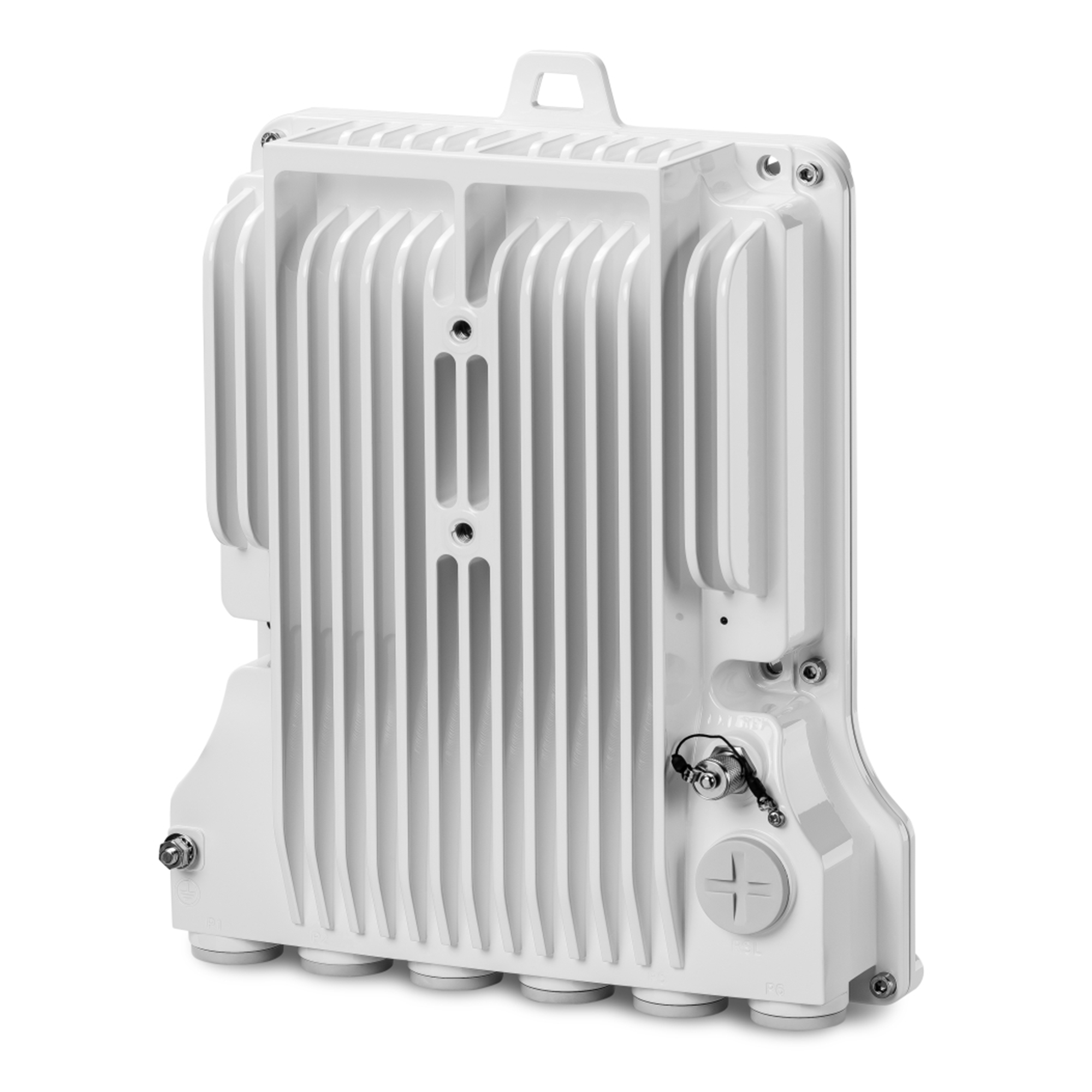

Cambium C110085B004A PTP 850C 11GHz Wideband w/Act Keys
We’ll source it and quote it — usually within one business day.
Request a Quote →The Cambium PTP 850C is an all-outdoor, dual-core licensed microwave radio built for mobile operators, carriers, and large enterprise or government networks that need multi-gigabit licensed backhaul. This unit operates in the licensed 11 GHz band and combines high-order modulation with wideband channels to push far more capacity down a single medium-haul hop. Its dual-core design carries a full 2+0 XPIC link from one radio, maximizing spectral efficiency on a single antenna.
As an all-outdoor platform the PTP 850C mounts at the antenna and removes indoor RF electronics and cable loss. This is a licensed 11 GHz wideband radio that must be paired with a matching far-end radio over a coordinated, licensed link, with the antenna and diplexer ordered separately. Plan the hop in Cambium LINKPlanner, license the spectrum, and unlock capacity and features with the included software activation keys.
Key specifications
- Cambium PTP 850C all-outdoor, dual-core licensed microwave radio
- Licensed 11 GHz band with wideband channel support; requires a coordinated, licensed link
- High-order modulation up to 4096 QAM with adaptive coding and modulation (ACM)
- Wideband channels up to 224 MHz (subject to band and channel plan) for high single-hop capacity
- Multi-gigabit aggregate throughput with dual-carrier 2+0 XPIC and capacity licensing
- Configurations from 1+0 through 4+0, plus 2+0 XPIC, HSB, and MIMO
- Software activation keys for capacity and feature enablement
- Direct antenna mount with no indoor unit or RF cabling
- Single radio (one end of the link); matching far-end radio, antenna, and diplexer ordered separately
Authorized, warrantied, and shipped warehouse-direct from Javelin Networks.
