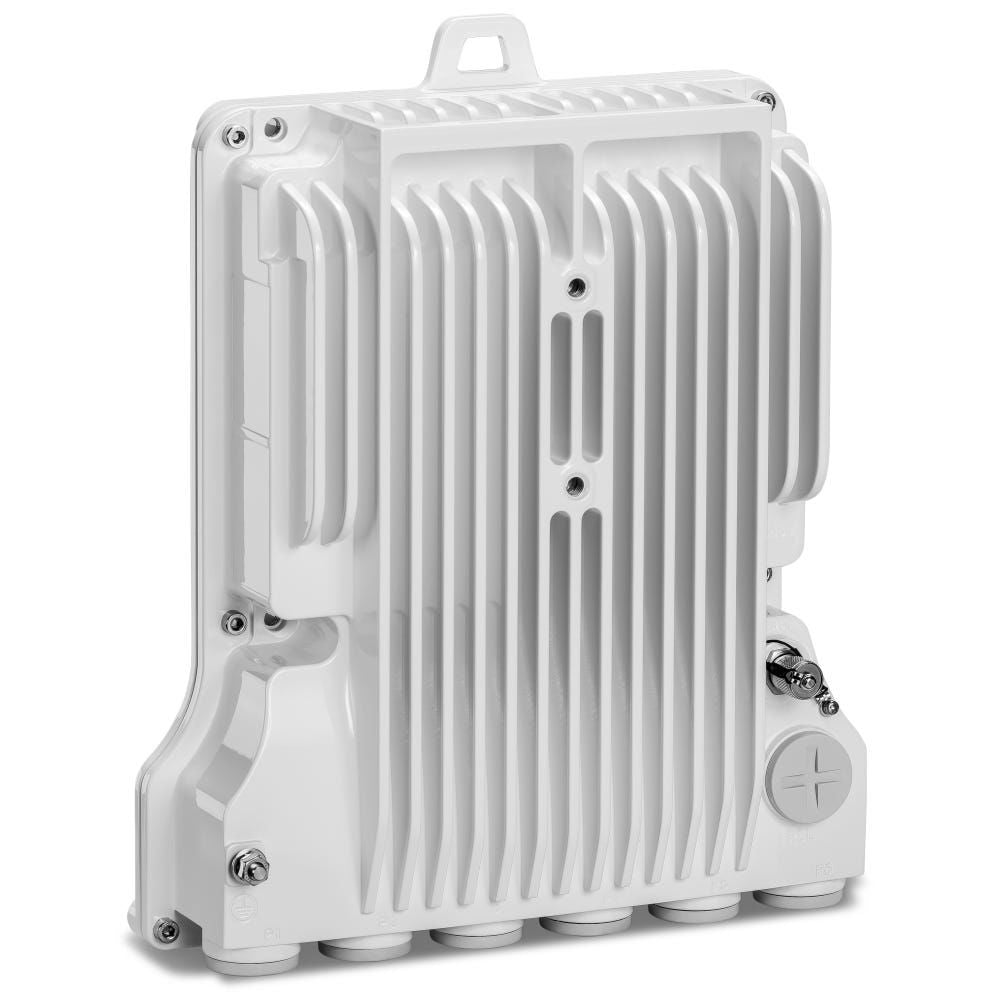

Cambium C180085B014A PTP 850C 18WGHz TR1560 ChAll Lo
We’ll source it and quote it — usually within one business day.
Request a Quote →The Cambium PTP 850C is an all-outdoor, dual-core licensed microwave radio built for mobile operators, carriers, and large enterprise or government networks that need multi-gigabit licensed backhaul. This unit operates in the licensed 18 GHz band, well suited to short-to-medium metro hops where wide channels deliver very high capacity. Its dual-core design carries a full 2+0 XPIC link from one radio, maximizing spectral efficiency on a single antenna.
As an all-outdoor platform the PTP 850C mounts at the antenna and removes indoor RF electronics and cable loss. This 18 GHz licensed-band radio uses 1560 MHz transmit and receive duplex spacing and is ordered in the low (Lo) sub-band, so the far end must use the complementary high (Hi) sub-band over a coordinated, licensed link. Plan the hop in Cambium LINKPlanner, license the spectrum, and unlock capacity and features with software activation keys; the antenna and diplexer are ordered separately.
Key specifications
- Cambium PTP 850C all-outdoor, dual-core licensed microwave radio
- Licensed 18 GHz band with 1560 MHz transmit and receive duplex spacing, low (Lo) sub-band
- High-order modulation up to 4096 QAM with adaptive coding and modulation (ACM)
- Wideband channels up to 224 MHz for very high single-hop capacity
- Multi-gigabit aggregate throughput with dual-carrier 2+0 XPIC and capacity licensing
- Configurations from 1+0 through 4+0, plus 2+0 XPIC, HSB, and MIMO
- Software activation keys for capacity and feature enablement
- Direct antenna mount with no indoor unit or RF cabling
- Single radio (one end of the link); matching far-end radio, antenna, and diplexer ordered separately
Authorized, warrantied, and shipped warehouse-direct from Javelin Networks.
