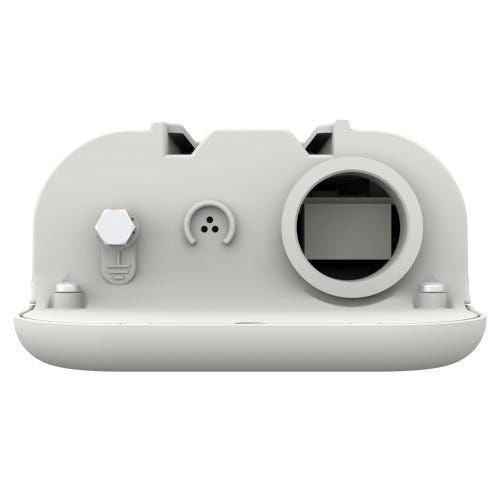

Cambium C600500C001B 60GHz cnWave V1000 Client Node w/US cord

The Cambium cnWave 60 GHz V1000 is a compact, entry-level client node that connects homes, small businesses, and edge devices to a 60 GHz cnWave network. Aimed at WISPs and ISPs delivering gigabit subscriber service, it is the low-cost customer-premises radio that terminates a link from a V5000 distribution node. Its wide beamforming makes self-install and quick alignment practical, reducing truck-roll time on residential deployments. This SKU ships with a US power cord.

In a network, the V1000 acts as a client (CPE) node in a PtMP or mesh topology, joining automatically once provisioned in cnMaestro. An 80-degree beamforming field means installers can mount and aim it without precise line-of-sight tuning, and management, firmware, and monitoring all run through the same cnMaestro platform as the rest of the cnWave estate. It is powered by standard 802.3af PoE, so it works with common gigabit injectors and switches.

Key specifications

• Frequency range: 57 to 66 GHz (license-free 60 GHz)
• Throughput up to 2 Gbps (1 Gbps DL and 1 Gbps UL)
• 22.5 dBi integrated antenna with 80-degree beamforming for easy install
• Latency under 1 ms
• 1 x 100/1000 BaseT with 802.3af PoE In
• Maximum EIRP 38 dBm; 128-bit AES encryption
• IP66/67 outdoor-rated enclosure
• Operating temperature: -40 to 60 C
