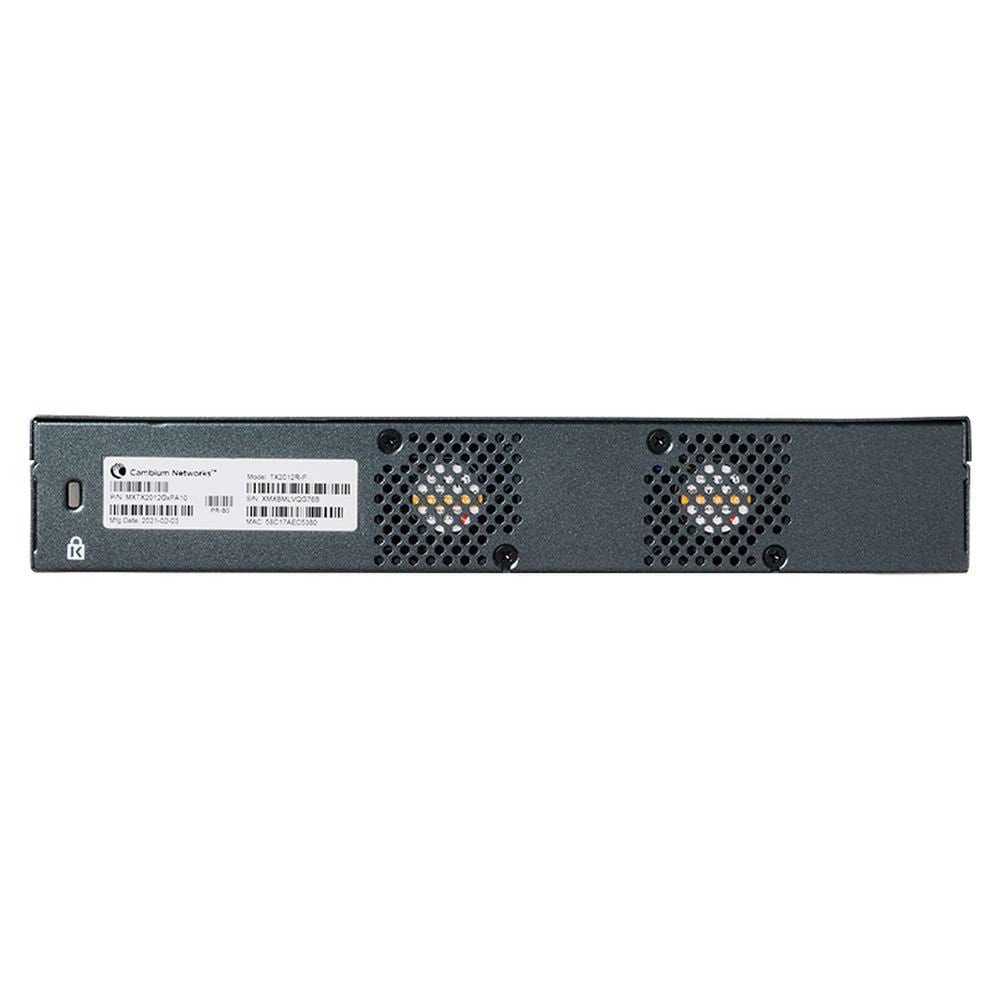

Cambium MXTX2012GxPA11 cnMatrix TX 2012R-P Ethernet USA
We’ll source it and quote it — usually within one business day.
Request a Quote →The cnMatrix TX2012R-P is a WISP-focused 8-port Gigabit PoE switch with four 10-gigabit SFP+ uplinks and a field-replaceable power supply. It is built for tower sites and fiber-fed access nodes where powering radios and keeping the link alive through a power event both matter. Cambium Sync support makes it a natural fit alongside PTP and PMP backhaul.
cnMaestro cloud or on-premises management brings zero-touch provisioning to the WISP fleet. The eight ports support 802.3af/at/bt PoE plus 24-volt and 54-volt passive PoE options for legacy and current Cambium radios, and the removable CRPS power supply supports redundancy sized to the load. Four SFP+ ports provide 10 Gbps fiber uplinks and node interconnects.
Key specifications
- 8x 10/100/1000 Mbps RJ45 ports with 802.3af/at/bt PoE
- 24-volt and 54-volt passive PoE options for Cambium radios
- 4x 10 Gigabit SFP+ fiber uplink ports
- Removable CRPS power supply with redundant-power support
- 96 Gbps switching capacity, 120 Mpps forwarding rate
- 16K MAC address table
- Cambium Sync for synchronized PTP and PMP deployments
- Managed by cnMaestro cloud or on-premises with zero-touch provisioning
Authorized, warrantied, and shipped warehouse-direct from Javelin Networks.
