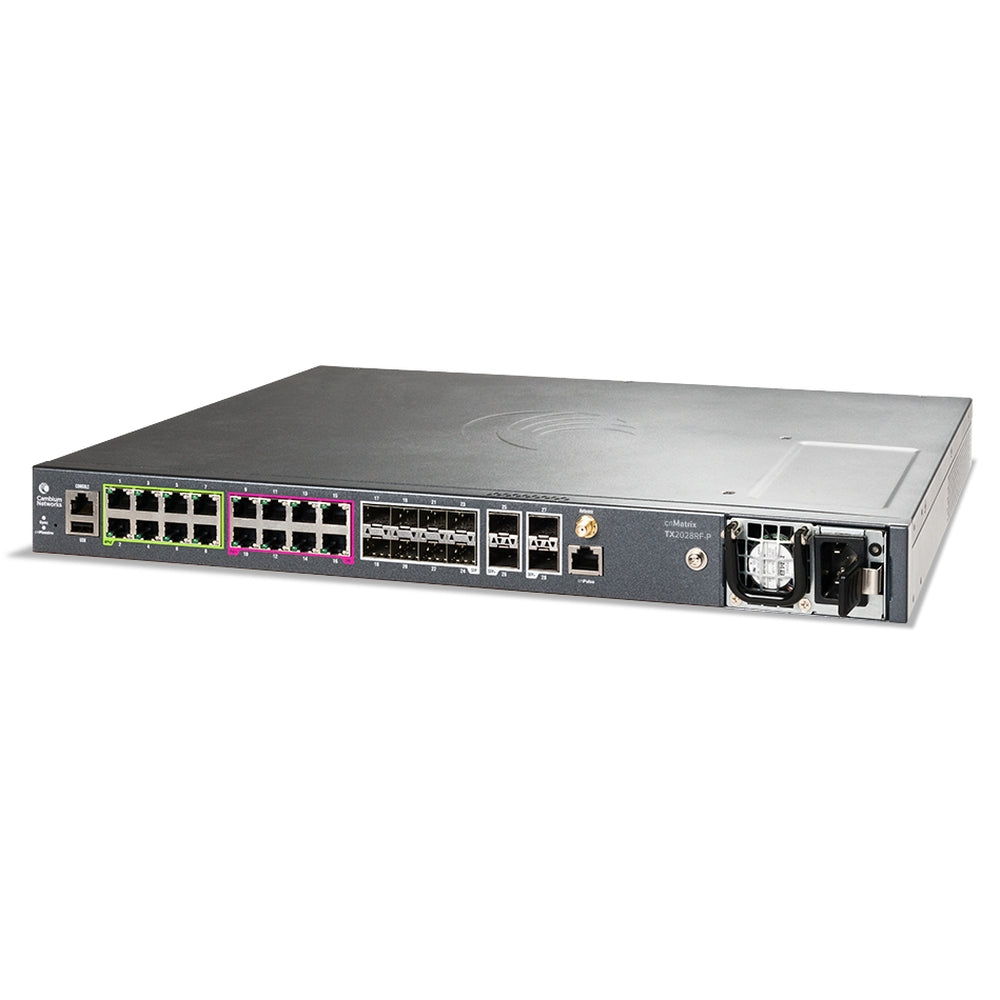

Request a Quote →The cnMatrix TX2028RF-P is a fiber-rich WISP aggregation switch combining 16 Gigabit PoE access ports, eight Gigabit SFP ports, and four 10-gigabit SFP+ uplinks. It is built for service providers running fiber-fed tower sites and access nodes that need a high count of optical ports in one managed unit. Cambium Sync support ties it into synchronized PTP and PMP backhaul networks.
Managed through cnMaestro cloud or on-premises, it provisions with zero-touch across the fleet. The 16 copper ports support 802.3af/at/bt PoE plus 24-volt and 54-volt passive PoE for Cambium radios, and the eight SFP plus four SFP+ ports deliver dense fiber aggregation from 1 Gbps to 10 Gbps. A removable CRPS power supply keeps field service simple.
Key specifications
- 16x 10/100/1000 Mbps RJ45 ports with 802.3af/at/bt PoE
- 24-volt and 54-volt passive PoE options for Cambium radios
- 8x Gigabit SFP fiber ports
- 4x 10 Gigabit SFP+ fiber uplink ports
- 128 Gbps switching capacity, 120 Mpps forwarding rate
- 16K MAC address table
- Cambium Sync for synchronized PTP and PMP deployments
- Removable CRPS power supply; managed by cnMaestro cloud or on-premises
Authorized, warrantied, and shipped warehouse-direct from Javelin Networks.
