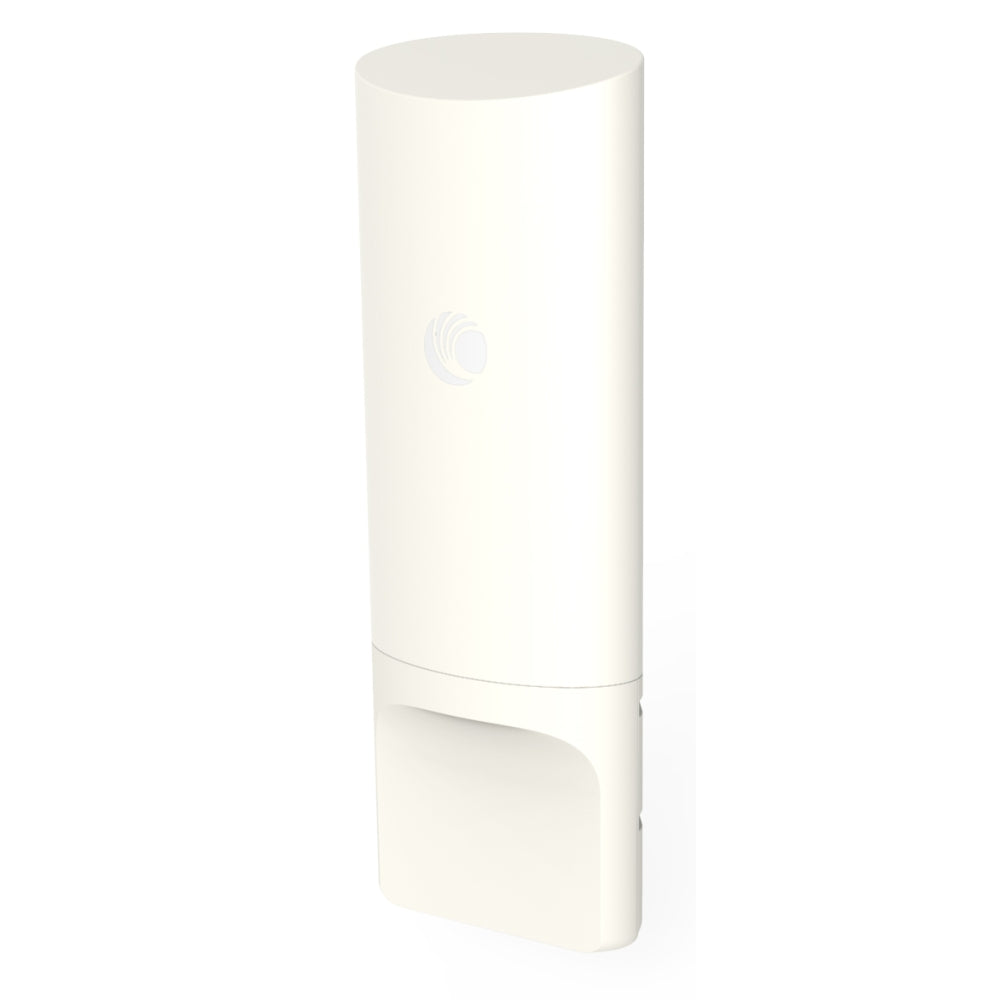

Cambium XV2-2T0XB00-US 2.4/5GHz Outdoor AP WiFi 6 Omni 2x2 2.5Gb US
We’ll source it and quote it — usually within one business day.
Request a Quote →The Cambium XV2-2T0X is an outdoor dual-radio Wi-Fi 6 (802.11ax) access point with integrated omnidirectional antennas and a 2.5 GbE uplink, made for campuses, outdoor hospitality, retail patios, parks, and MSP-served public venues. Its 2x2 MU-MIMO radios on 5 GHz and 2.4 GHz handle dense crowds of mobile and IoT clients, while multi-gigabit backhaul keeps the wired link from bottlenecking Wi-Fi 6 throughput. It is a rugged coverage workhorse for enterprises pushing the network outdoors.
Managed through cnMaestro cloud or on-premises, the XV2-2T0X folds into the same dashboard as the rest of a Cambium estate. The IP67 enclosure and wide temperature range suit pole or wall mounting in the elements, and a second Ethernet port with software-configurable passive PoE out can power an auxiliary device such as a camera or another AP.
Key specifications
- Outdoor Wi-Fi 6 (802.11ax), dual-radio 2x2:2 on 5 GHz and 2.4 GHz
- Integrated omni antennas: 9.3 dBi at 5 GHz, 5.3 dBi at 2.4 GHz
- 1 x 100/1000/2500 Mbps (2.5 GbE) uplink plus 1 x 10/100/1000 Mbps port with configurable passive PoE out
- 802.3at powered device; up to 50W total when powering an auxiliary device
- BLE 4.1 for IoT and location services
- IP67-rated enclosure; operating range -40 to 65 C (-40 to 149 F)
- Pole or wall mount for outdoor deployment
- Managed by cnMaestro cloud or on-premises
Authorized, warrantied, and shipped warehouse-direct from Javelin Networks.
