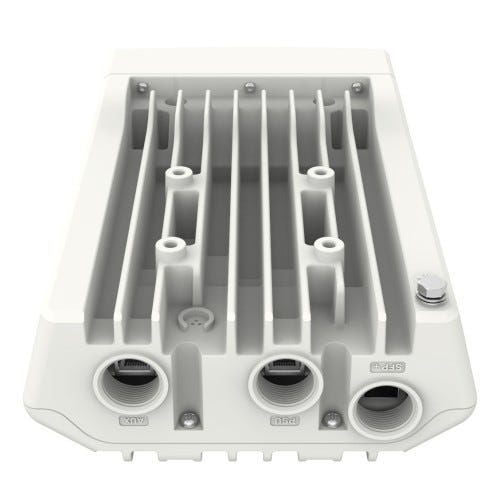

cnWave 60 GHz V5000 Distribution Node

The Cambium cnWave 60 GHz V5000 is a dual-sector distribution node built for WISPs, ISPs, and integrators deploying high-density gigabit wireless in the license-free 60 GHz band. Based on Terragraph technology, it aggregates traffic across two sectors with 280 degrees of coverage, letting operators blanket streets, campuses, and dense multi-dwelling areas without trenching fiber to every point. It solves the classic middle-mile bottleneck by delivering fiber-like capacity where cable is impractical or too costly.

As the backbone of a cnWave network, a single V5000 can anchor a mesh of up to four other distribution nodes or serve up to 30 client nodes in a PtMP layout, with automatic beamforming and self-healing mesh routing. The full network is provisioned and monitored through cnMaestro (cloud or on-premises), so operators can onboard nodes, tune links, and watch performance from one dashboard. Its PoE-out port can also power a downstream client radio for compact tower or rooftop builds.

Key specifications

• Frequency range: 57 to 66 GHz (license-free 60 GHz)
• Dual-sector design with 280 degrees of coverage; 22.5 dBi integrated antenna with beamforming (plus or minus 140 degrees azimuth, plus or minus 20 degrees elevation)
• Aggregate throughput up to 7.2 Gbps (1.8 Gbps DL and 1.8 Gbps UL per sector)
• Scales to four distribution nodes or up to 30 client nodes from a single unit
• Ports: 1 x 100/1000/10G BaseT with PoE In, 1 x 100/1000 BaseT with 802.3at PoE Out, 1 x SFP+ (1G and 10G)
• Powered by passive PoE (42 to 57 V); 35 W typical, up to 65 W with aux PoE out in use
• IP66/67 outdoor-rated enclosure
• Operating temperature: -40 to 60 C
• Dimensions: 280 x 186 x 103 mm

Authorized, warrantied, and shipped warehouse-direct from Javelin Networks.
