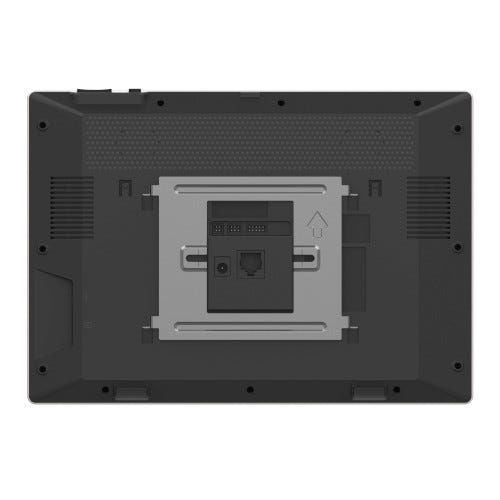

Fanvil i56A SIP Indoor Video Intercom Station
We’ll source it and quote it — usually within one business day.
Request a Quote →The Fanvil i56A is an Android touch-screen SIP indoor station for apartments, villas, and building lobbies that want a large, tablet-style panel to manage door entry and access control. Its 10.1-inch capacitive touchscreen shows live door-camera and authorized-camera feeds, so occupants can screen visitors and release the door with a tap.
Running Android 9.0 with six SIP accounts, it integrates with Fanvil door phones and standard SIP platforms, and PoE keeps the install to a single cable. Dual-band Wi-Fi and Bluetooth 5.0 add wireless flexibility, while two onboard relays and eight alarm inputs let it handle door control and basic security monitoring from one unit.
Key specifications
- 6 SIP account lines
- 10.1-inch 1280 x 800 capacitive color touch screen
- Android 9.0 operating system
- Monitors the door phone and authorized camera images (no onboard camera)
- PoE powered; optional DC 12V/1A supply
- Bluetooth 5.0 and dual-band Wi-Fi (2.4 GHz and 5 GHz)
- 2 relay outputs and 8 alarm input interfaces, plus RS485 and TF card slot
- Operating temperature 0 to 45 degrees C
Authorized, warrantied, and shipped warehouse-direct from Javelin Networks.
