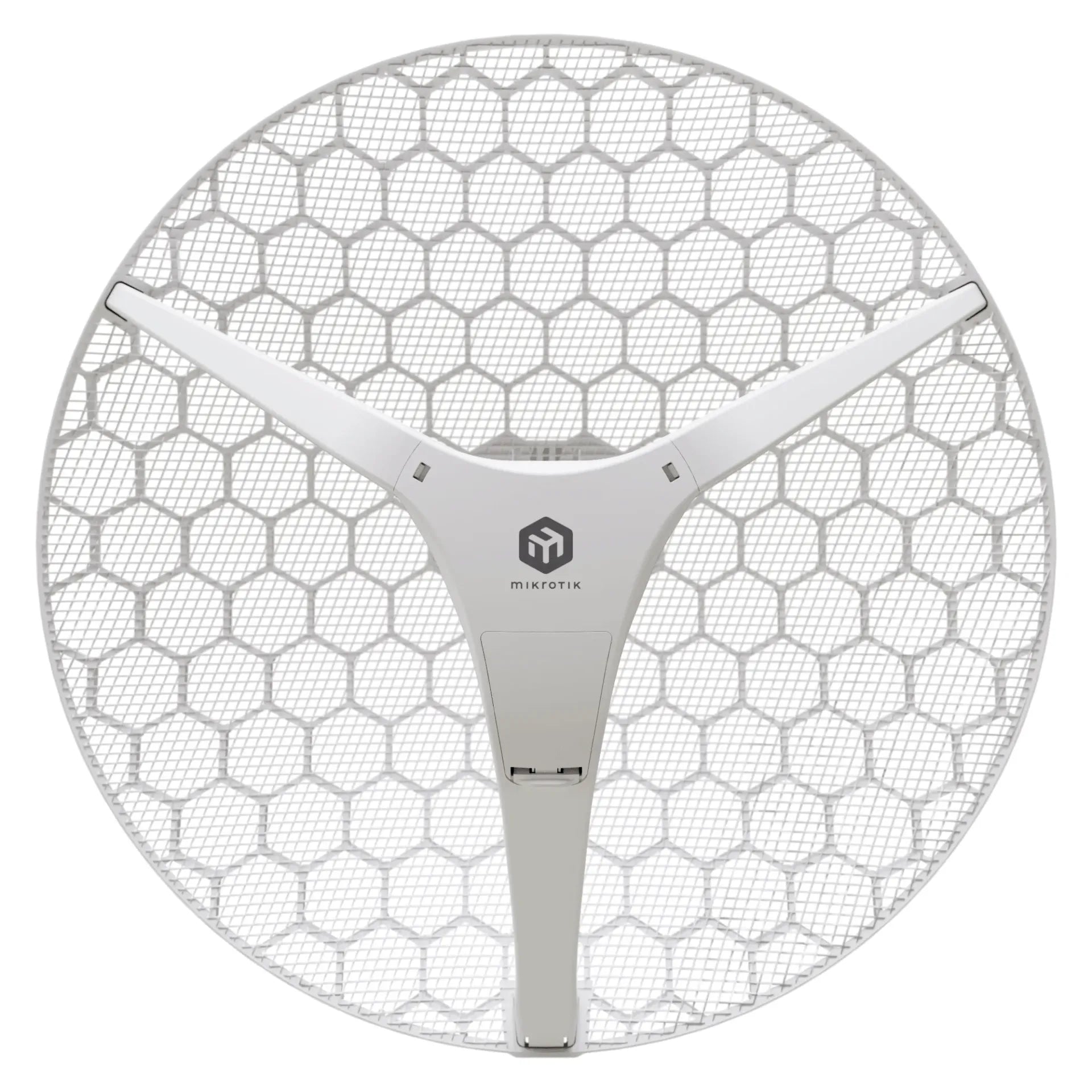

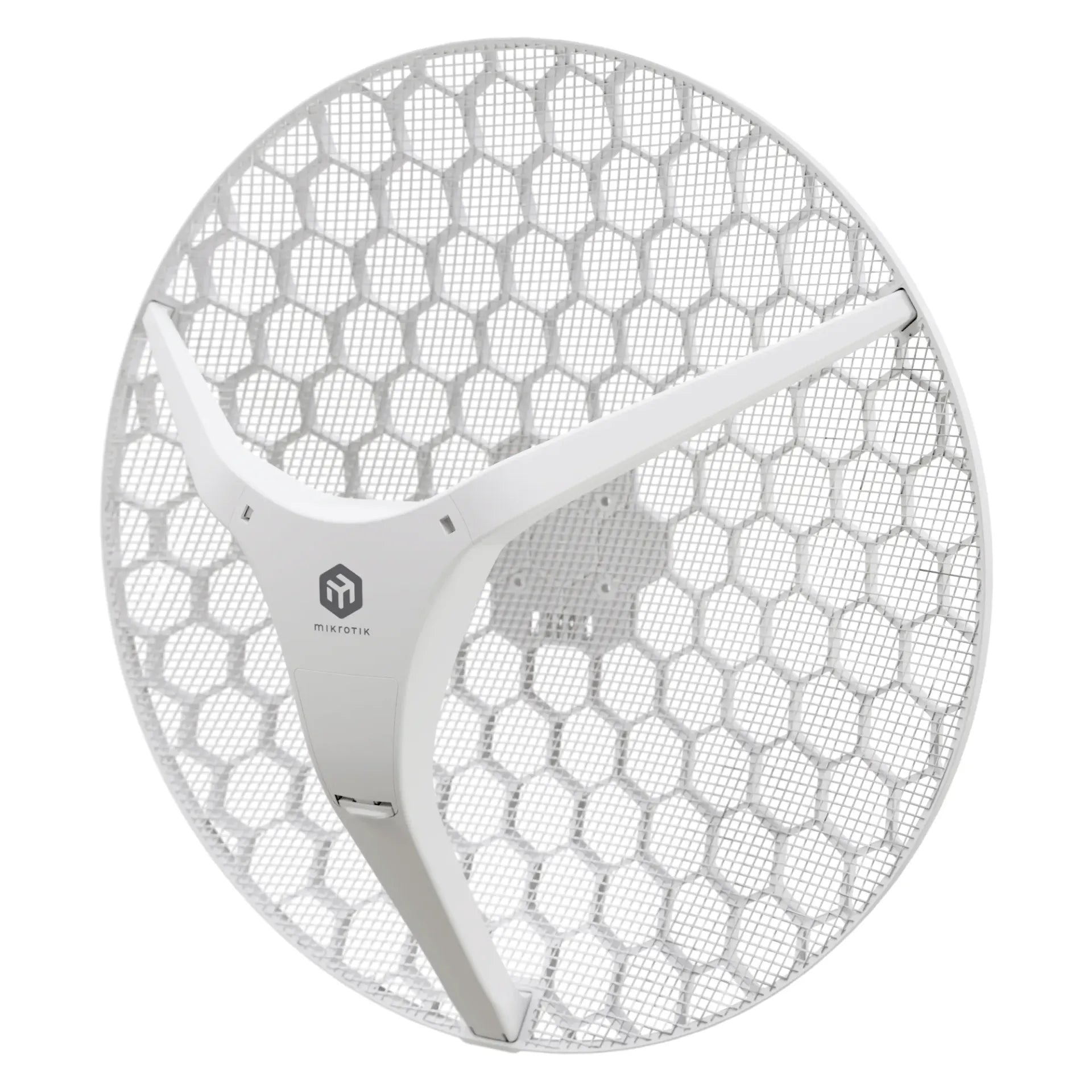

Request a Quote →The MikroTik LHG 5 ax XL is a 5 GHz Wi-Fi 6 dish CPE built for long-distance links at the edge of a WISP network. The large 27 dBi integrated antenna concentrates signal into a tight beam for strong, stable connections over distance, while 802.11ax support brings the efficiency and higher throughput of Wi-Fi 6 to the subscriber end.
A dual-core CPU and RouterOS v7 handle modern wireless features and traffic management, and the sealed outdoor housing installs quickly with a single PoE cable. Aim it at a compatible base station on the tower and it delivers a clean point-to-point or point-to-multipoint client link.
Key specifications
- Band: 5 GHz (802.11a/n/ac/ax, Wi-Fi 6)
- Integrated antenna: 27 dBi dish
- Max data rate: 1200 Mbit/s (2 chains)
- CPU: IPQ-5010, 800 MHz, dual-core
- Memory: 256 MB RAM, 128 MB NAND storage

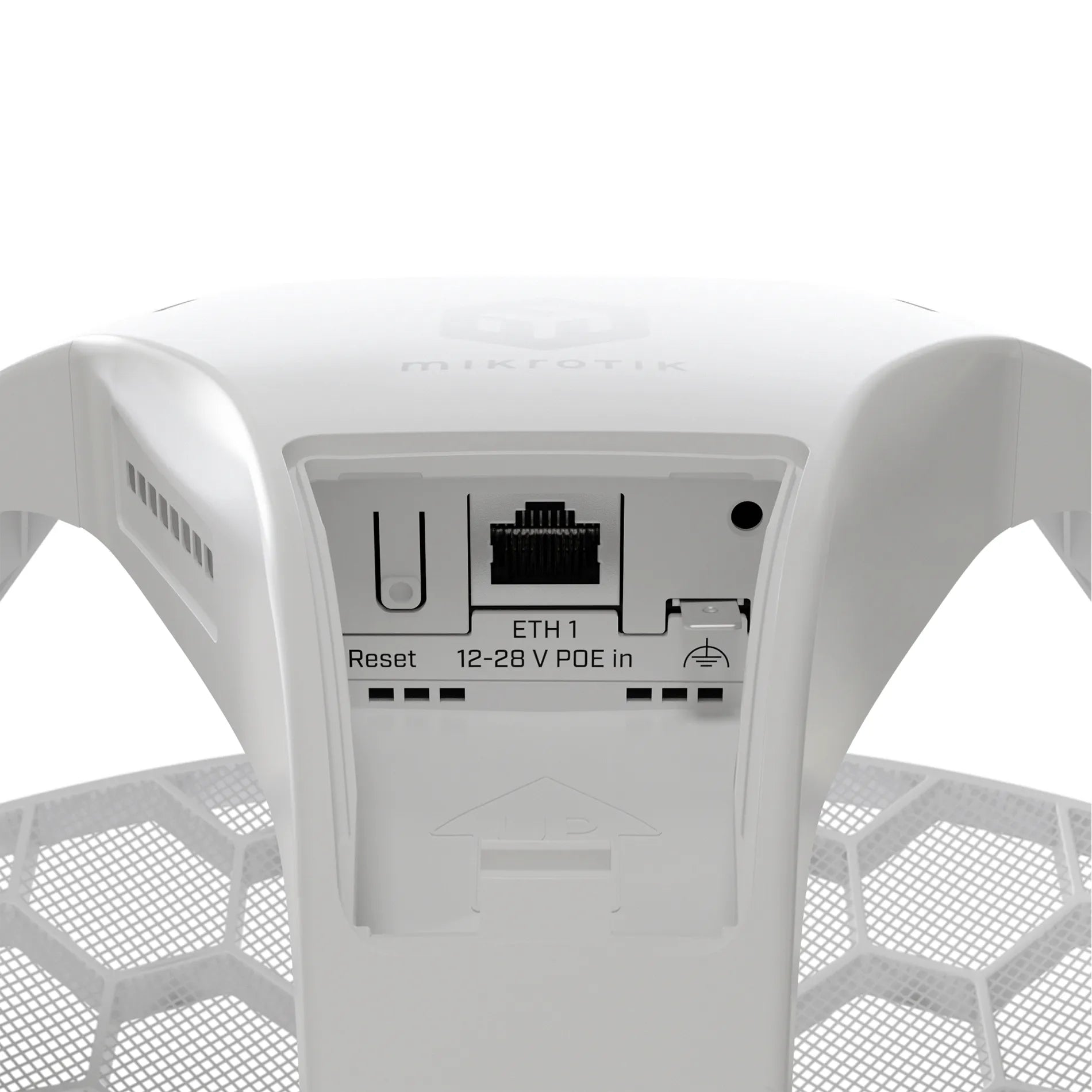

- Ports: 1x Gigabit Ethernet (10/100/1000)
- PoE input: 12-28 V (passive)
- RouterOS v7, license Level 3
- Enclosure: IP54, operating temperature -40 to 70 C
- Max power consumption: 5 W
