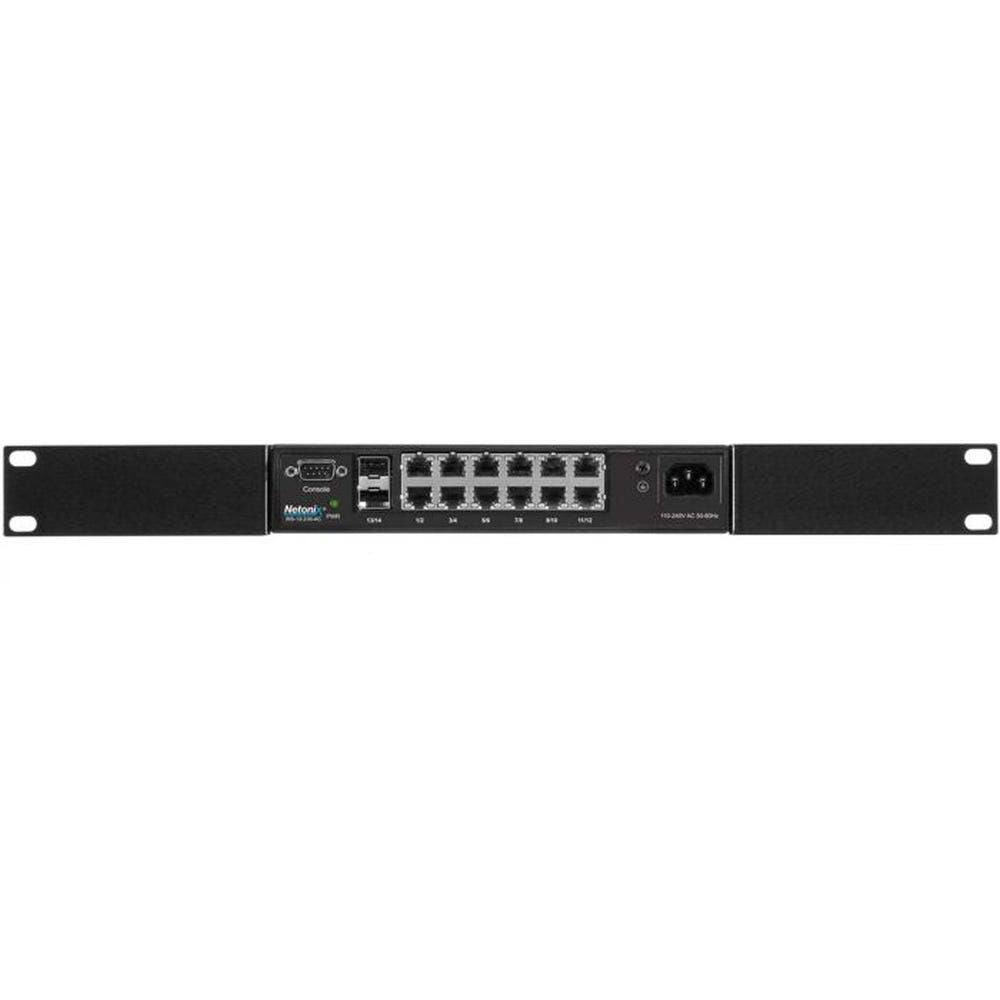

Netonix WS-12-250-AC 12 Port Managed PoE Switch AC 250W
We’ll source it and quote it — usually within one business day.
Request a Quote →The Netonix WS-12-250-AC is a 12-port managed PoE switch that powers a dense cluster of radios, cameras and access points from a single AC-fed chassis. It is a workhorse for WISPs, tower operators and outdoor wireless deployments that need real switching intelligence at the aggregation point, not just dumb injectors.
The standout is per-port selectable passive PoE: assign 24 volts or 48 volts to each port independently and mix Ubiquiti-style 24 volt gear with 48 volt hardware on one switch. Two SFP uplinks carry fiber backhaul, per-port current sensors expose exactly what each device is drawing, and the full managed feature set covers VLANs, QoS, link aggregation and SNMP through a clean web interface.
Key specifications
- 12 Gigabit RJ45 PoE ports plus 2 SFP uplink ports
- Per-port selectable passive PoE: 24 volts and 48 volts at 1 amp, with 24VH and 48VH high-power 2 amp ports
- 250 watt total PoE power budget
- Universal 110 to 220 volt AC input
- Passive PoE current sensors on every port
- Web-managed 802.1Q VLANs, QoS, LACP and static aggregation, SNMP and STP/RSTP/MSTP
- Temperature-controlled fan cooling with RPM monitoring
- Rugged chassis rated -25 to 55 degrees Celsius, rack, wall or desktop mount, made in North America
Authorized, warrantied, and shipped warehouse-direct from Javelin Networks.
