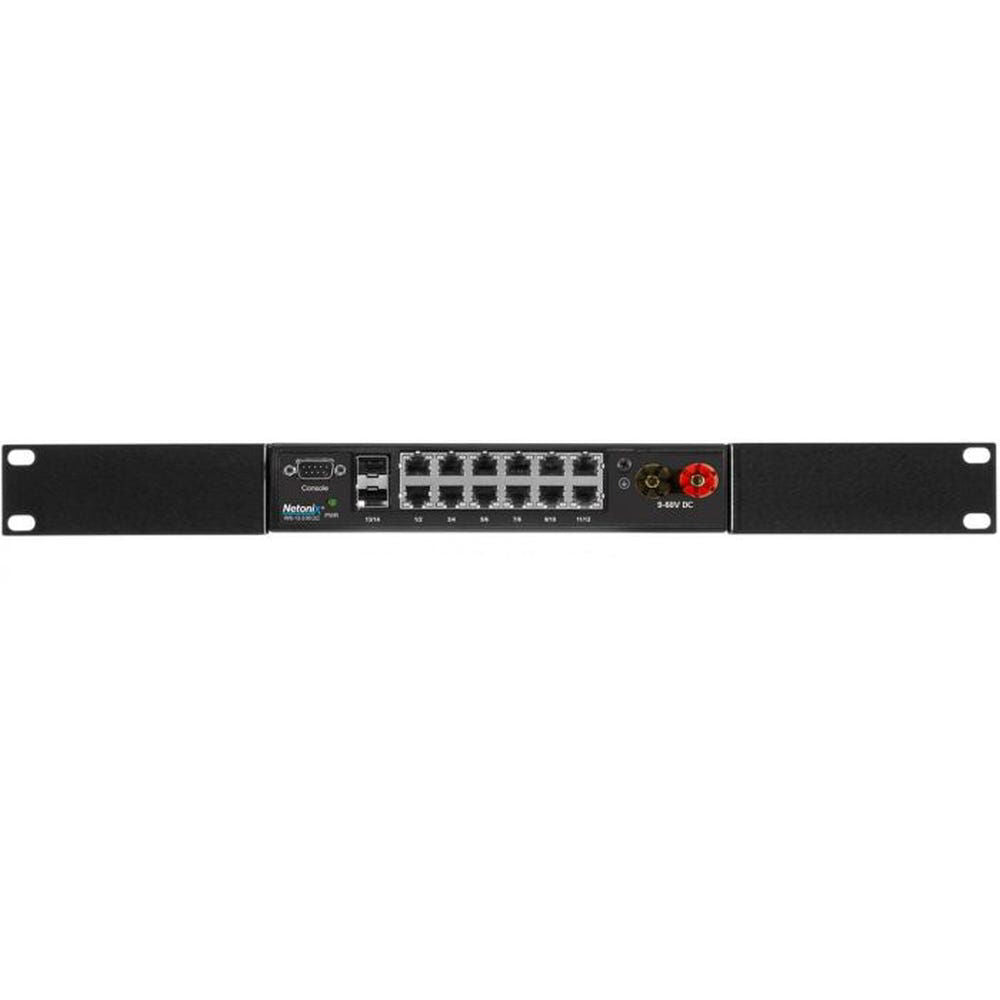

Netonix WS-12-250-DC 12 Port Managed PoE Switch DC 250W
We’ll source it and quote it — usually within one business day.
Request a Quote →The Netonix WS-12-250-DC brings 12 ports of managed PoE to sites that run on DC power. Its wide-range DC input connects directly to battery banks and solar plants, so tower and off-grid wireless nodes get full switching intelligence without an AC supply anywhere in the cabinet.
Per-port selectable passive PoE lets you set 24 volts or 48 volts on each port and power a mixed fleet of radios from one switch, while dual SFP uplinks handle fiber. SMART DC power management monitors battery voltage and current, tiers the 250 watt budget as input voltage changes, and can shut down priority ports on low battery to protect an unattended site. VLANs, QoS, aggregation and SNMP are all managed from the web interface.
Key specifications
- 12 Gigabit RJ45 PoE ports plus 2 SFP uplink ports
- Per-port selectable passive PoE: 24 volts and 48 volts, with 24VH and 48VH high-power 2 amp ports
- 250 watt PoE budget with intelligent tiering by input voltage
- Wide DC input from 9 to 72 volts variable for battery, solar and tower power
- SMART power: monitors battery DC voltage and current with priority port shutdown and programmable thermal shutdown
- Web-managed 802.1Q VLANs, QoS, LACP and static aggregation, SNMP and STP/RSTP/MSTP
- Temperature-controlled fan cooling with RPM monitoring
- Rugged chassis rated -25 to 55 degrees Celsius, made in North America
Authorized, warrantied, and shipped warehouse-direct from Javelin Networks.
