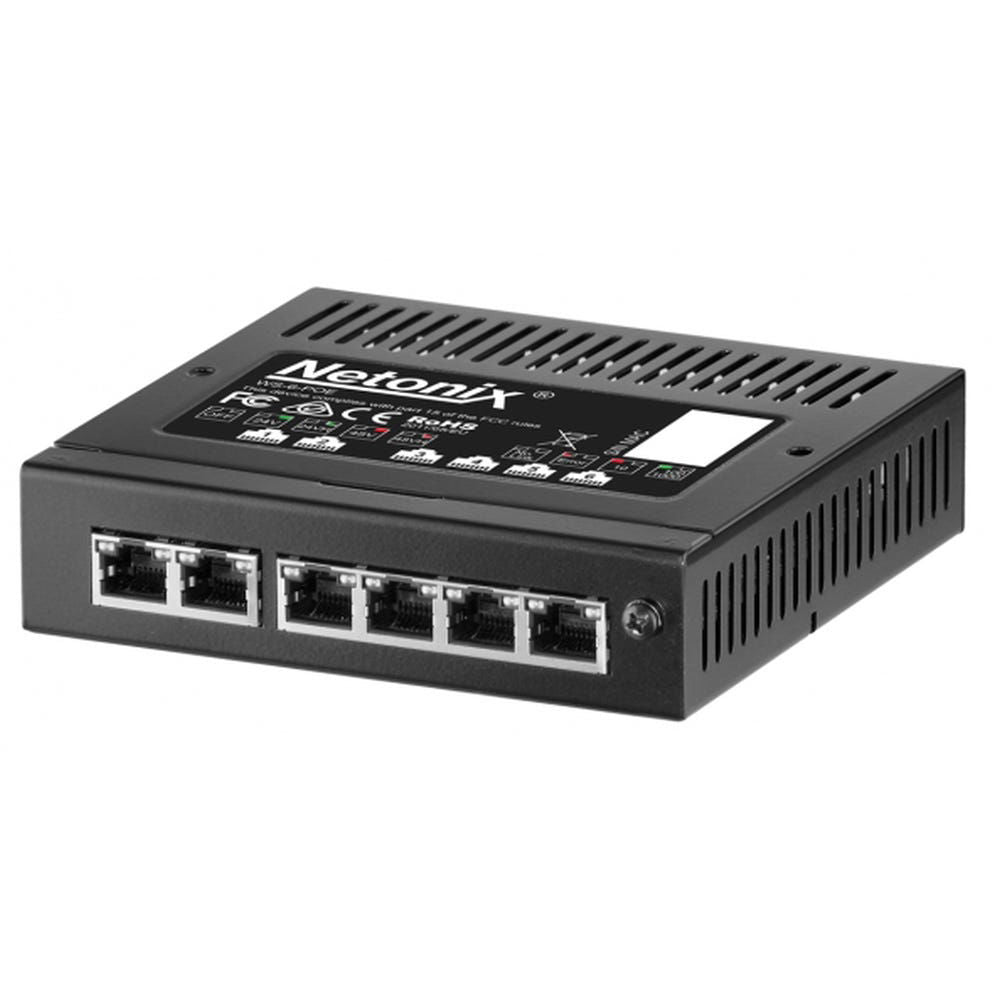

Netonix WS-6-MINI Mini Managed Passive PoE Switch
We’ll source it and quote it — usually within one business day.
Request a Quote →The Netonix WS-6-MINI packs a full managed passive PoE switch into a palm-sized, fanless chassis built for the edge of a wireless network. It is the unit WISPs and tower operators reach for at small sites, rooftops and sealed enclosures where space, power and heat are all tight but carrier-grade control is still non-negotiable.
Its signature feature is per-port selectable passive PoE: set each port to 24 volts or 48 volts independently, so you can power a mix of 24 volt Ubiquiti radios and 48 volt gear from one compact switch without separate injectors. Live per-port current sensors, 802.1Q VLANs and QoS deliver genuine managed control, while the fanless design means nothing to spin down or fail inside an outdoor box.
Key specifications
- 6 Gigabit RJ45 ports at 10/100/1000; 5 software-selectable passive PoE ports plus uplink
- Per-port selectable passive PoE: 24 volts and 48 volts, plus high-power 24VH and 48VH options
- 100 watt total power input capacity
- DC input from 37 to 53 volts, or a 48 to 54 volt DC adapter or barrel connector
- Passive PoE current sensors on every port for live per-port monitoring
- Web-managed with 802.1Q VLANs and QoS
- Fanless rugged chassis rated -25 to 55 degrees Celsius
- Compact 127 by 118 by 32 mm with DIN-rail and wall mount options and a serial console port
- Manufactured and assembled in North America
Authorized, warrantied, and shipped warehouse-direct from Javelin Networks.
