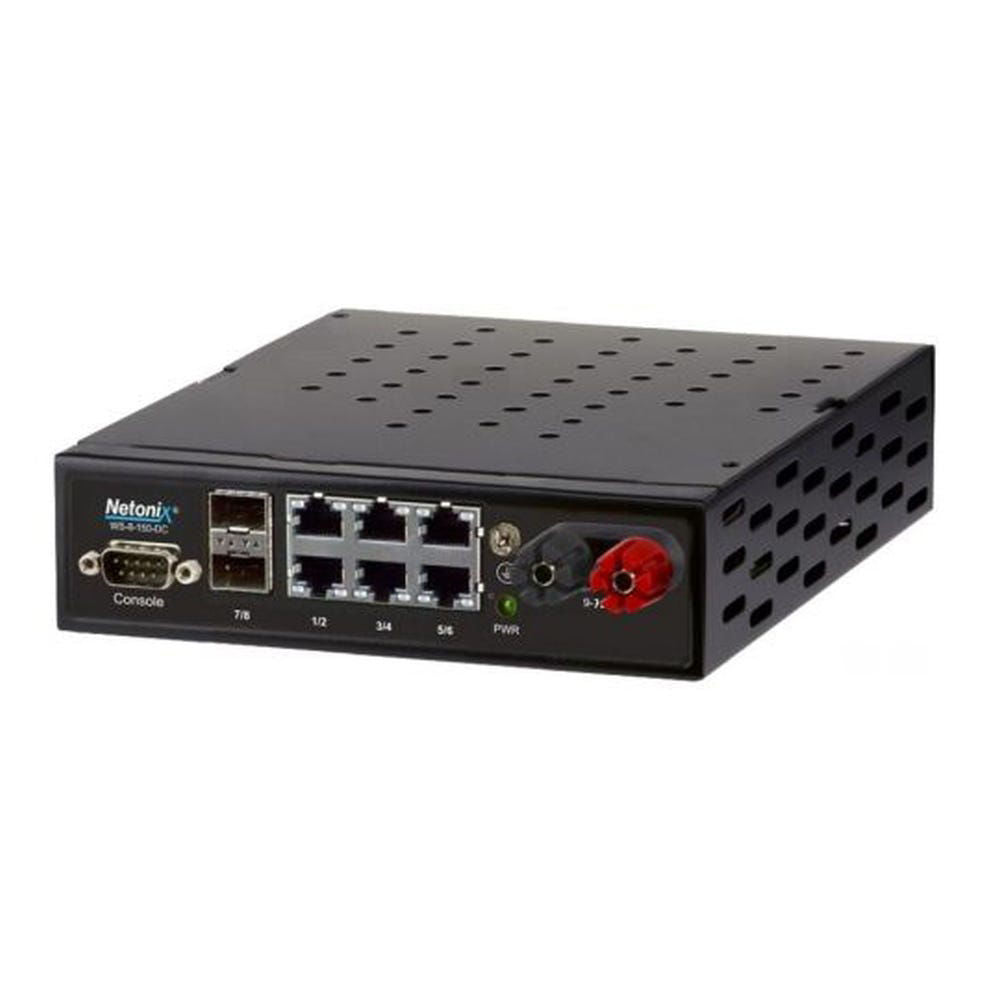

Netonix WS-8-150-DC 8 Port Managed PoE Switch DC 150W
We’ll source it and quote it — usually within one business day.
Request a Quote →The Netonix WS-8-150-DC is a compact managed PoE switch built for DC-powered tower and rooftop sites. With native wide-range DC input, it drops straight onto a battery bank or solar plant without a mains supply, making it a natural fit for WISPs powering point-to-point links and access points at remote wireless nodes.
Every RJ45 port offers per-port selectable passive PoE, so you can run 24 volt and 48 volt radios side by side from one switch. Two SFP uplinks handle fiber backhaul, while onboard battery voltage and current monitoring, programmable thermal shutdown and low-battery port shutdown keep an unattended site running predictably. Full managed control means VLANs, QoS and link aggregation all live in the web interface.
Key specifications
- 6 Gigabit RJ45 PoE ports plus 2 SFP uplink ports
- Per-port selectable passive PoE: 24 volts and 48 volts, with high-power 2 amp variants
- 150 watt total PoE power budget
- Wide DC input from 9 to 72 volts variable, ideal for battery and solar tower sites
- Monitors battery DC voltage and current with programmable thermal and low-battery port shutdown
- Web-managed 802.1Q VLANs, QoS, LACP and static link aggregation, SNMP and STP/RSTP/MSTP
- Temperature-controlled fan cooling with RPM monitoring
- Rugged chassis rated -25 to 55 degrees Celsius with serial console, made in North America
Authorized, warrantied, and shipped warehouse-direct from Javelin Networks.
