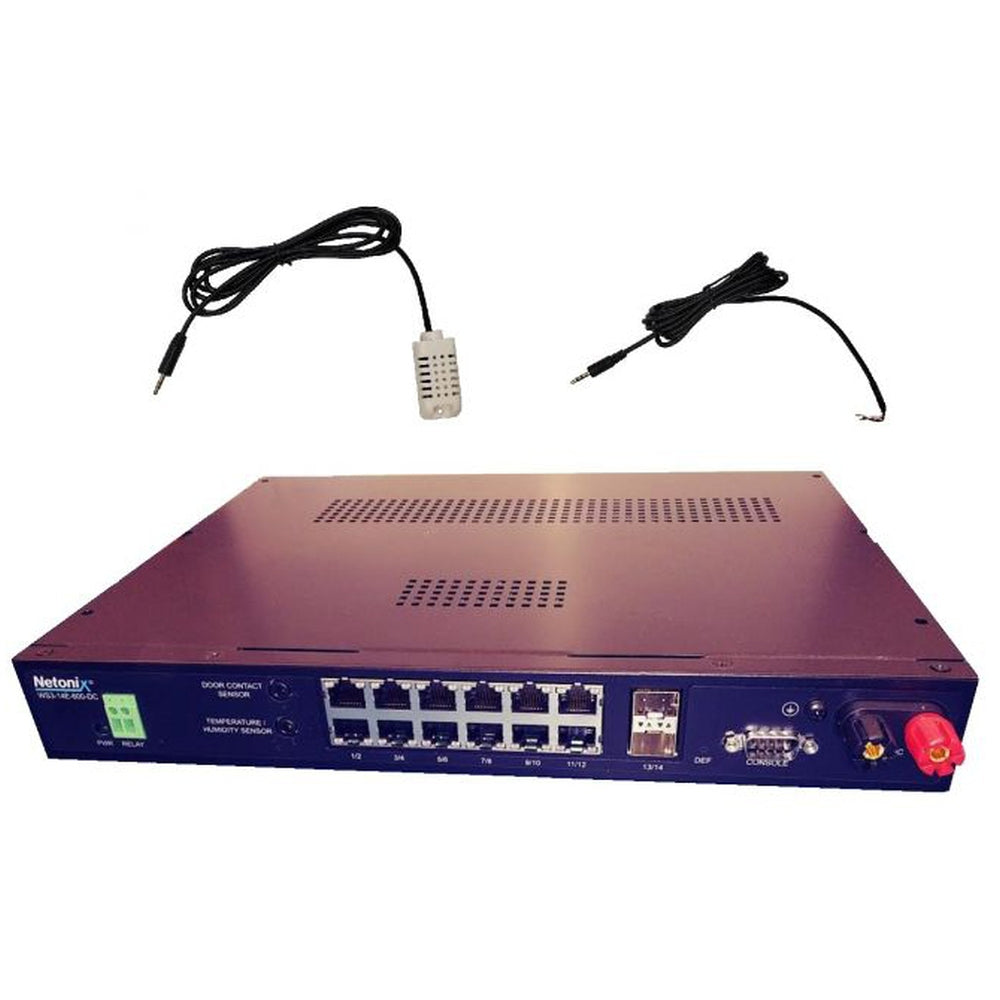

Netonix WS3-14-600-DC 14 Port Managed PoE Switch SFP+ DC 600W
We’ll source it and quote it — usually within one business day.
Request a Quote →The Netonix WS3-14-600-DC is the newer WS3-generation WISP switch, pairing 12 Gigabit PoE ports with dual 10 Gigabit SFP+ uplinks and a heavyweight 600 watt PoE budget. It is built for high-capacity DC tower and backhaul sites that have outgrown 1 Gigabit uplinks and need real headroom for modern radios and cameras.
Per-port selectable passive PoE lets you set 24 volts or 48 volts independently and mix a full fleet of gear on one switch, while the SFP+ uplinks move traffic at 10 Gigabit for fiber backhaul and aggregation. A wide DC input runs it straight off batteries and solar, over-current protection guards every PoE port against shorted cables, and a complete managed stack of VLANs, QoS, link aggregation and SNMP lives in the Netonix web interface.
Key specifications
- 12 Gigabit RJ45 PoE ports plus 2 SFP+ uplink ports for 14 ports total
- SFP+ uplinks run 100/1000/10000 for 10 Gigabit backhaul and aggregation
- Per-port selectable passive PoE: 24 volts and 48 volts at 0.75 amp, with 24VH and 48VH high-power 1.5 amp ports
- 600 watt PoE budget above 21 volt input, intelligently tiered by input voltage
- Wide DC input from 9 to 72 volts variable for battery and solar tower power
- Over-current protection on all PoE ports to guard against shorted cables
- Web-managed 802.1Q VLAN and QinQ, LACP and static LAG, QoS bandwidth limiting and flow control, SNMP and STP/RSTP/MSTP
- Rugged chassis rated -25 to 55 degrees Celsius, made in North America
Authorized, warrantied, and shipped warehouse-direct from Javelin Networks.
