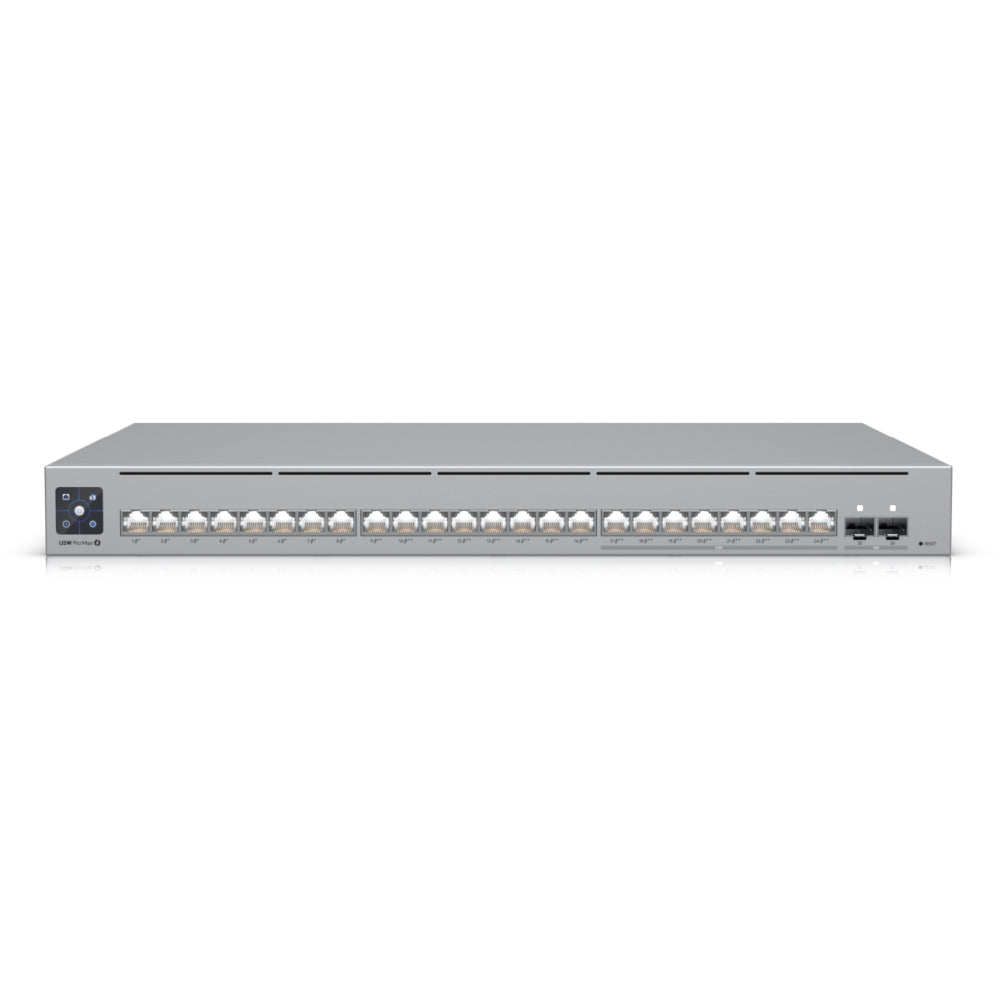

Ubiquiti USW-Pro-Max-24-PoE UniFi Switch Pro Max 24 PoE
We’ll source it and quote it — usually within one business day.
Request a Quote →The UniFi Switch Pro Max 24 PoE is a Layer 3 switch for demanding sites, IT integrators, and WISPs that mix Gigabit and multi-gigabit devices on one managed platform. A block of 2.5GbE ports and high-power PoE++ make it a strong fit for Wi-Fi 6E and Wi-Fi 7 access points, PTZ cameras, and other gear that outgrows standard Gigabit and PoE+.
Managed in UniFi Network, it delivers per-port PoE control, VLANs, and full traffic visibility, while dual 10G SFP+ uplinks give the backbone real headroom. Etherlighting on the RJ45 and SFP+ ports turns link and PoE status into an at-a-glance readout, backed by the on-unit touchscreen.
Key specifications
- Ports: 16x 1GbE RJ45 (8 PoE+, 8 PoE++) and 8x 2.5GbE RJ45 (PoE++)
- Uplinks: 2x 10G SFP+
- PoE: 802.3af/at/bt, up to 60W per port on PoE++ ports
- Total PoE budget: 400W
- Switching capacity: 112 Gbps
- Non-blocking throughput: 56 Gbps
- Etherlighting on RJ45 and SFP+ ports
- Management: UniFi Network, with 1.3-inch touchscreen display
- Mounting: 1U rackmount
- Power: internal 550W AC/DC supply
Authorized, warrantied, and shipped warehouse-direct from Javelin Networks.
