Ubiquiti Wave-Fiber-ONU UISP WaveFiber ONU
by Ubiquiti
$55.99
Need a different configuration, a bulk quantity, or a product we don’t stock?
We’ll source it and quote it — usually within one business day.
Request a Quote →The UISP WaveFiber ONU is a GPON optical network unit that terminates a fiber connection at the subscriber premises, giving WISPs and fiber operators a managed endpoint for their GPON deployments. It brings symmetric-capable gigabit fiber service to homes and businesses over long optical spans.
An SC/APC fiber port handles the GPON WAN side, while a 2.5 GbE RJ45 LAN port hands off to the customer network at faster-than-gigabit speeds. It is managed through UISP with dashboards, alarms, and remote firmware upgrades, and runs on simple 24V passive PoE for straightforward installs.
Key specifications
- Standard: GPON (ITU-T G.984)
- Downstream rate: 2.488 Gbps
- Upstream rate: 1.244 Gbps

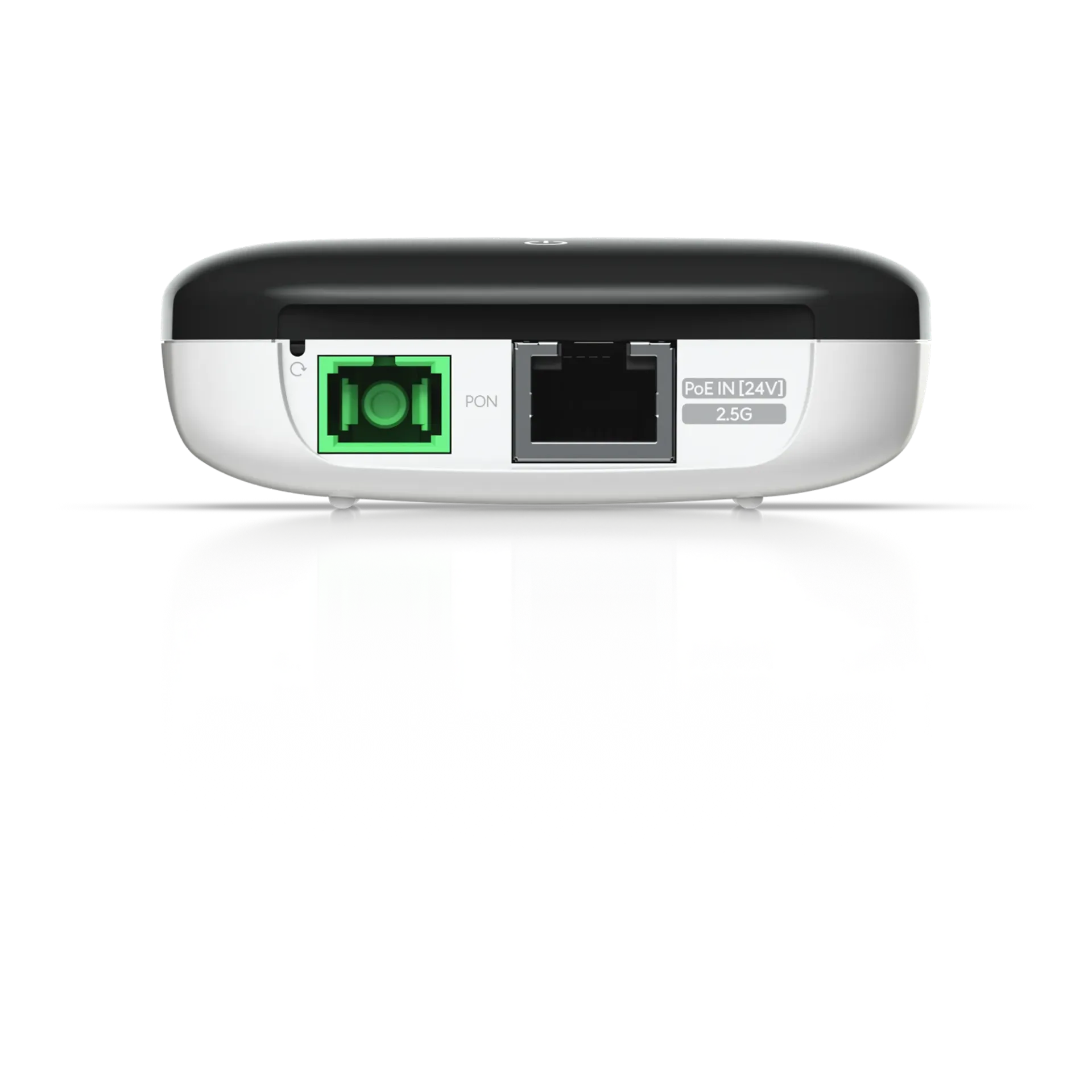

- Fiber: SC/APC GPON WAN port
- LAN: 1/2.5 GbE RJ45 port
- Max range: 20 km
- Platform: UISP Fiber
- Power: 24V passive PoE, max 5W (20 to 28V DC)
Authorized, warrantied, and shipped warehouse-direct from Javelin Networks.
